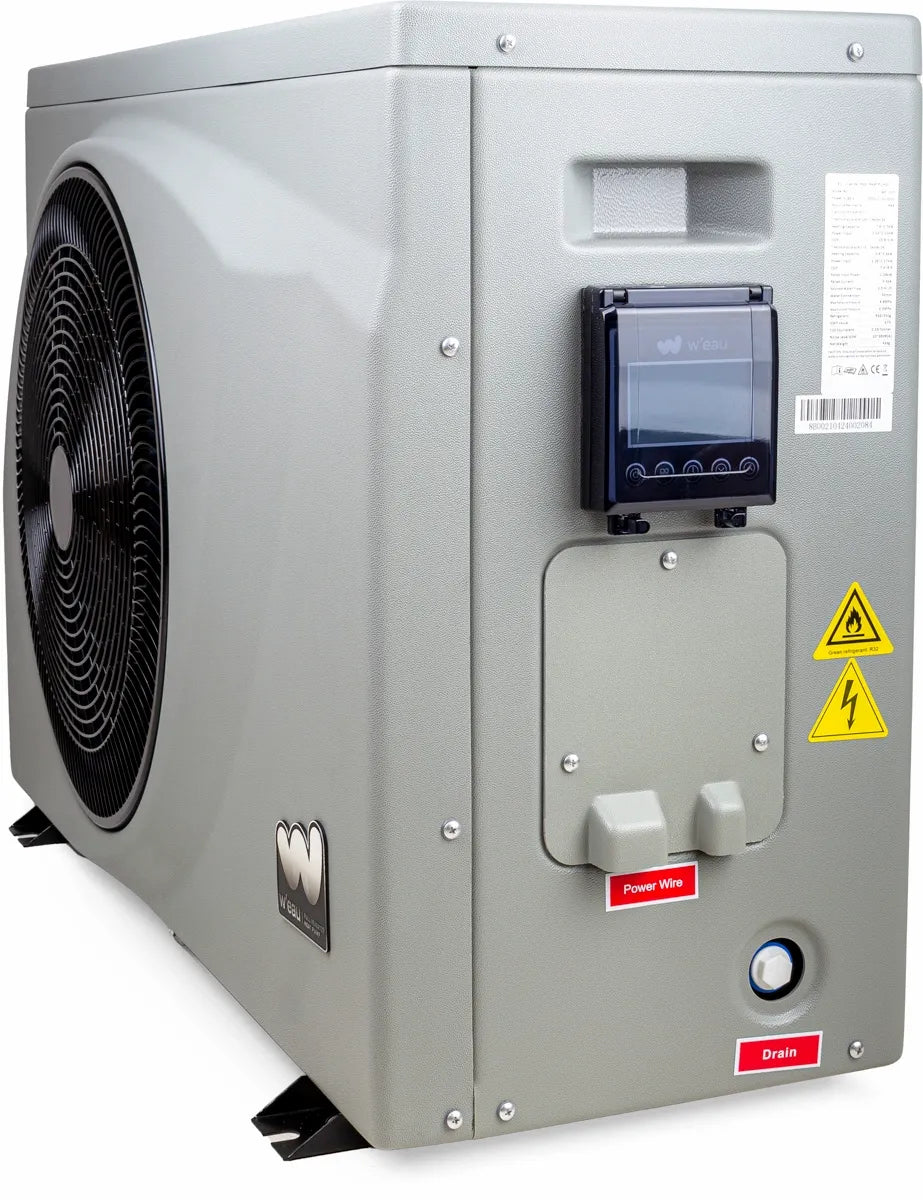

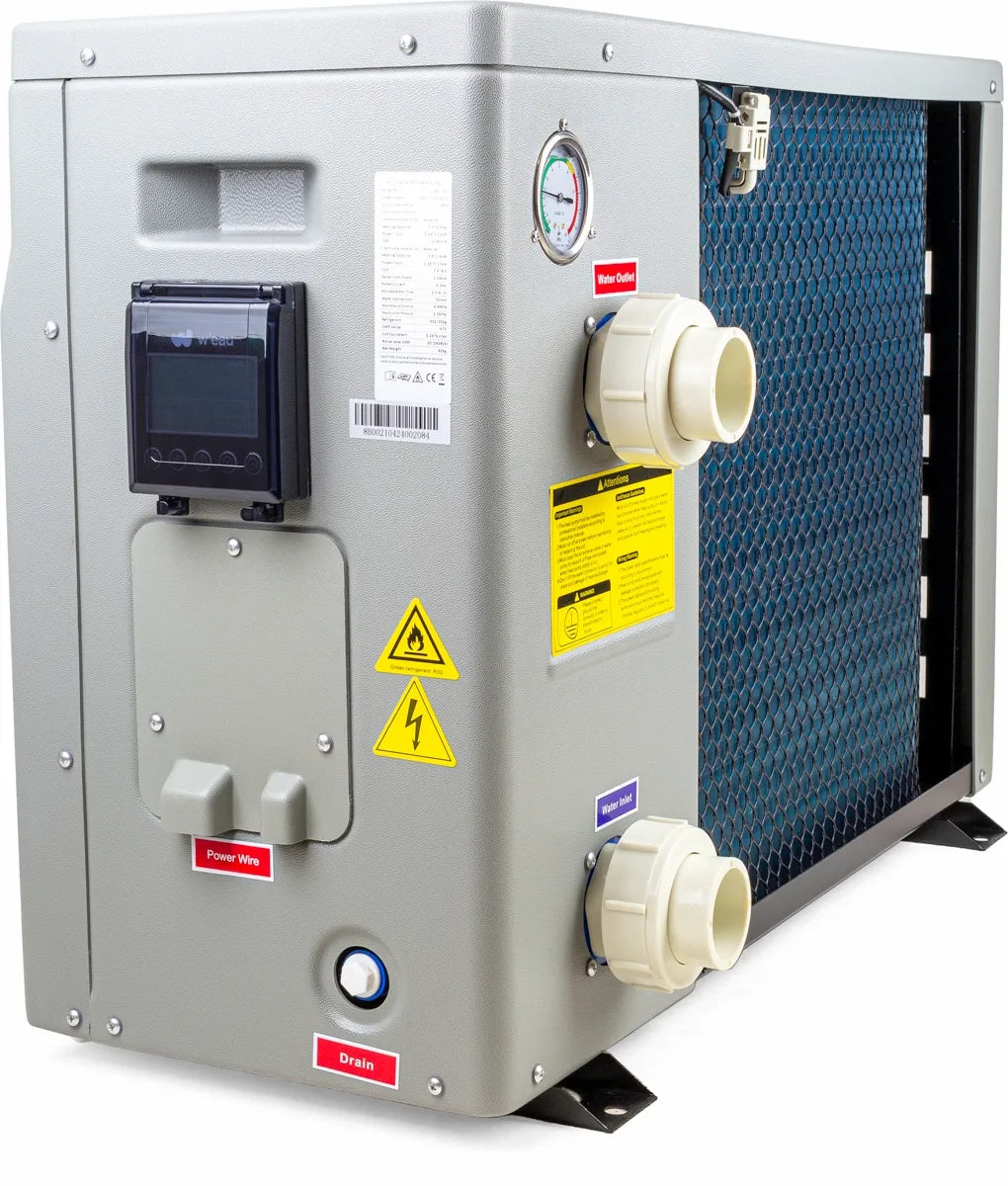

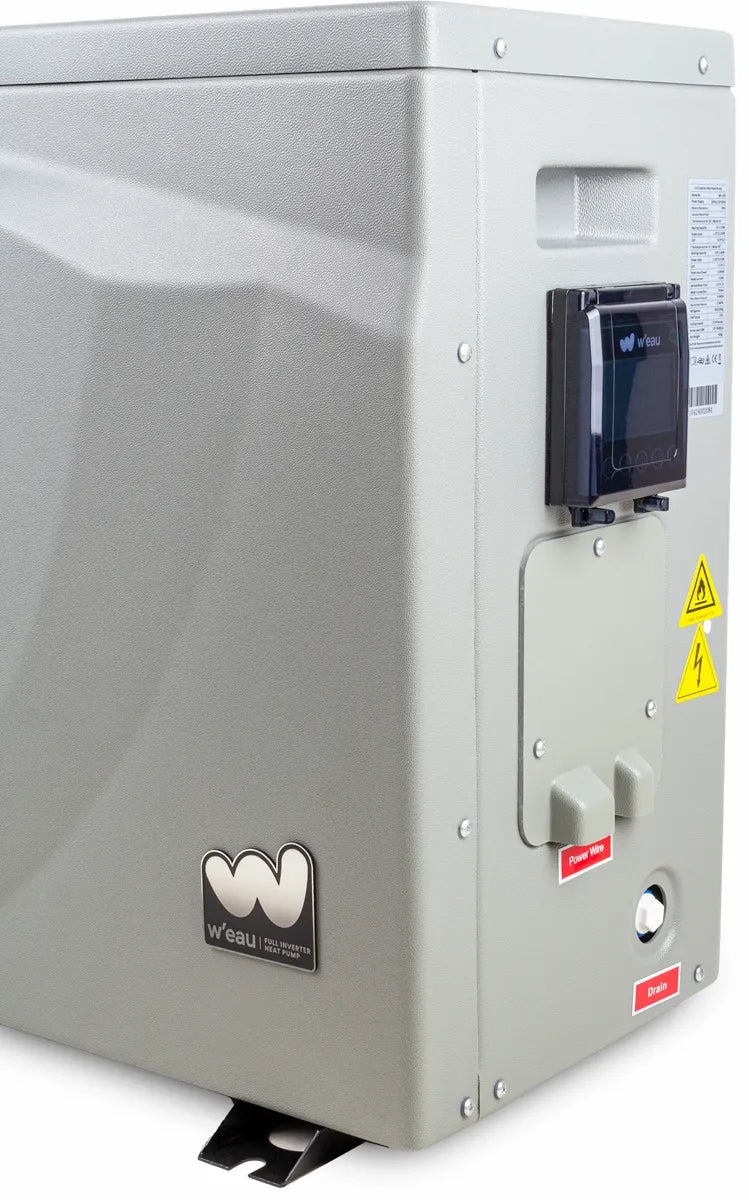

W'eau Full Inverter 35 kW swimming pool heat pump

The W'eau Full Inverter 35 kW was developed for the efficient heating and cooling of large private swimming pools. Thanks to the Full Inverter technology, the compressor automatically adjusts its power to the heat demand, making the heat pump consume significantly less energy and operate more quietly than traditional on/off models.

With a heating capacity of up to 35 kW, this heat pump is suitable for swimming pools up to 190 m³ (when using a cover). In addition, the device has a cooling mode, so that the pool water can also be kept pleasantly cool during warm summer days.

Energy-efficient Full Inverter technology

The inverter compressor and fan never run harder than necessary. This allows you to benefit from:

• Lower power consumption
• Higher COP up to 15.8
• More constant water temperature
• Less wear and tear
• Whisper-quiet operation during normal use

This makes the heat pump not only economical to use, but also more comfortable than a traditional swimming pool heat pump.

Suitable for large swimming pools

This version is suitable for:

• Swimming pools up to 190 m³ (with cover)
• Minimum recommended water flow of 12 m³ per hour
• Connection to 50 mm PVC pipe
• Operation on 380-415V mains power (3-phase)

This makes this heat pump ideal for larger indoor swimming pools and luxury outdoor pools.

Also works at low outdoor temperatures

Thanks to the advanced technology, the heat pump continues to function excellently at outdoor temperatures from -15°C to +43°C. This makes it easy to extend the swimming season from early spring well into autumn.

Saltwater resistant

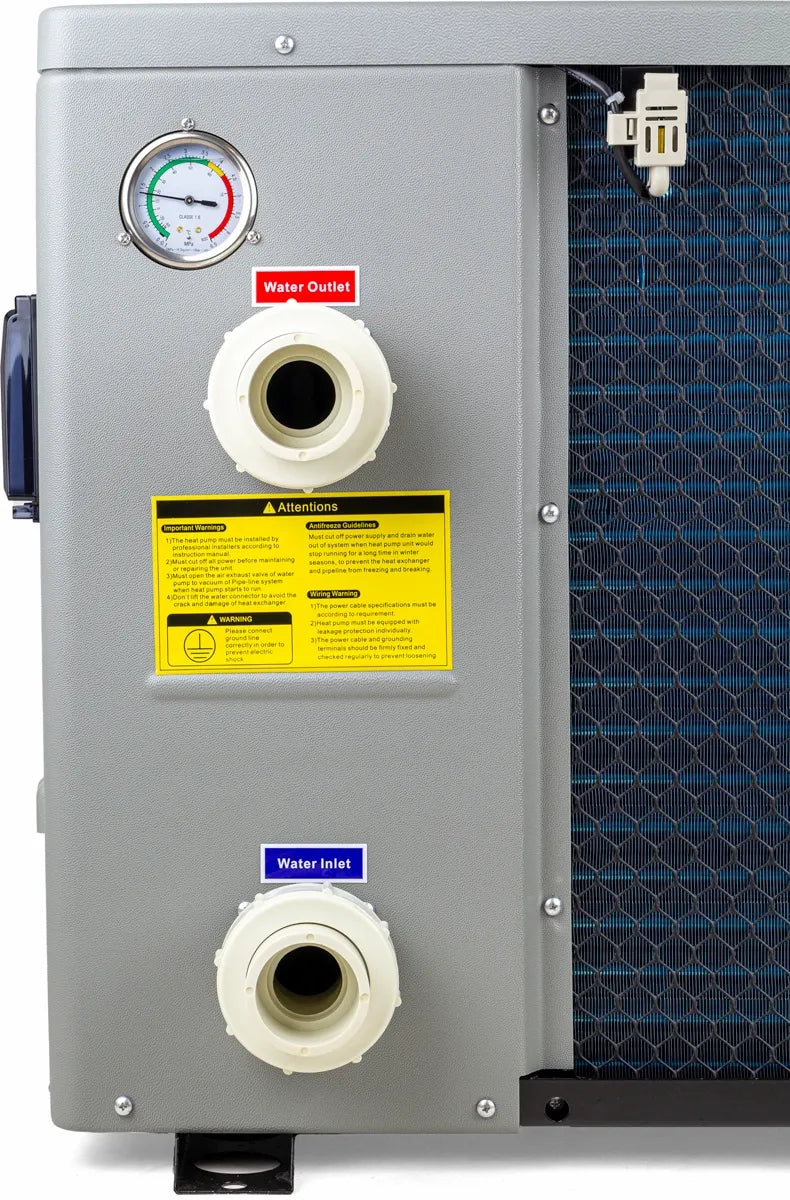

The high-quality screwed titanium heat exchanger is completely resistant to salt water and corrosion. This makes the heat pump suitable for both chlorine and salt water swimming pools.

Wi-Fi control

Via the free W'eau app, you can easily operate the heat pump remotely. With this, you can, among other things:

• Set temperature
• Select heating or cooling
• Set timer
• Switch the heat pump on and off
• View faults

This way you always have complete control over your swimming pool, wherever you are.

Main benefits

• Full Inverter technology
• Heating and cooling
• Suitable for swimming pools up to 190 m³
• COP up to 15.8
• Works from -15°C to +43°C
• Titanium heat exchanger
• Suitable for salt water pools
• Wi-Fi control via app
• Sturdy ABS housing
• 50 mm connections
• Works on 380-415V mains power (3-phase)
• Very quiet operation

Technical specifications

• Power: 35 kW
• Suitable for swimming pools: 85 - 190 m³
• Power supply: 380-415V / 3-phase / 50-60Hz
• Maximum power consumption: 6.93 kW
• Maximum current: 11.3 A
• Water flow: 12 m³/h
• COP: 15.8 - 6.8
• Refrigerant: R32
• Heat exchanger: Titanium
• Water connection: 50 mm
• Heating temperature range: 8°C - 40°C
• Cooling temperature range: 8°C - 28°C
• Operating temperature: -15°C to +43°C
• Water resistance: IPX4
• Noise level: 49 - 59 dB(A) at 1 meter
• Dimensions: 1085 × 420 × 740 mm
• Weight: 90 kg

Manual

Manual Full Inverter swimming pool heat pump - 35 kW (mains power) - W'eau
