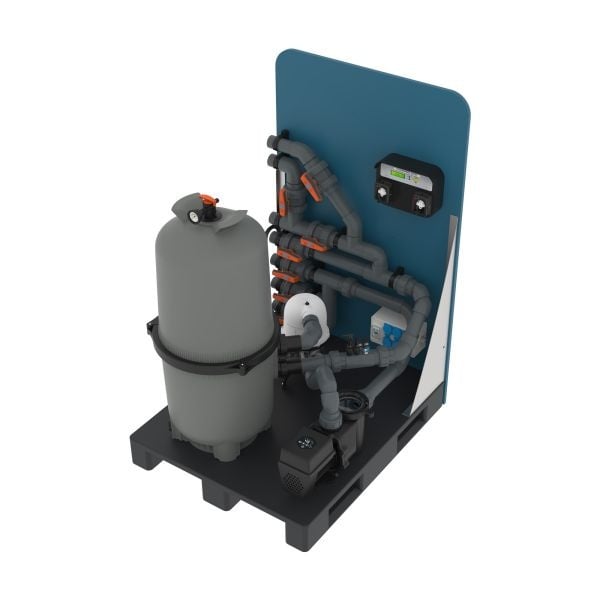

The AquaForte Filter Pallet Cartridge VS (TC310) is an advanced and fully pre-assembled filter system designed for swimming pools up to 75 m³. This updated version of the TC300 has been strategically optimized with 63 mm piping and practical side connections, ensuring more efficient installation and improved flow.

The traditional sand filter has been replaced by the Galaxy ICF530 multi-cartridge filter, allowing you to filter an entire swimming season without intensive maintenance. In combination with the AstralPool Hydrospin Compact cyclone filter, coarse and heavy debris are removed before reaching the filter, significantly increasing the system's lifespan and performance.

The AquaForte Invereco IVS 100 variable swimming pool pump delivers energy-efficient performance and optimal control over water circulation. For stable water quality, the system is equipped with a Technopool pH/Rx controller, which automatically doses chlorine and acid.

The entire system is pre-assembled on a robust plastic pallet with a PE back panel and has been pressure tested, ensuring fast and reliable installation.

Contents

• Galaxy ICF530 multi-element cartridge filter
• AstralPool Hydrospin Compact cyclone filter
• AquaForte Invereco IVS 100 variable swimming pool pump
• Technopool pH/Rx control
• Flow chamber for pH/Rx sensors, including earth connection
• 3 inlets Ø63 mm
• 2 returns Ø63 mm, including bypass system Ø63 mm for heating
• Pre-assembled on plastic pallet with PE back panel
• Pressure tested (air)
• Includes filter media (4 cartridges)
• Junction box for 6 plugs with 16A fuse and 30 mA residual current protection

Specifications

• Item number: TC310
• EAN: 8717605139760
• Suitable for: swimming pools up to 75 m³
• Piping: 63 mm
• Connections: side
• Filter type: cartridge (multi-element)

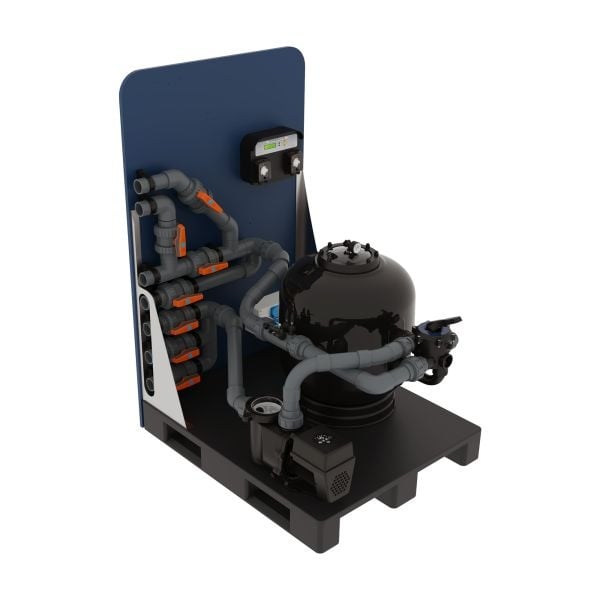

Complete pre-assembled filter system on a plastic pallet, designed for swimming pools up to 75 m³. This compact and efficiently constructed system is equipped with 63 mm piping and side connections, keeping installation clear and practical. An AquaForte polyester sand filter and an AquaForte Invereco IVS 100 variable swimming pool pump are pre-assembled on the pallet. For precise and automatic water treatment, the system is equipped with a Technopool pH/Rx control for chlorine and acid dosing.

The filter system is delivered fully pre-assembled on a plastic pallet with a PE back wall and has been pre-tested for pressure with air. This makes it a professional and immediately deployable solution for reliable filtration and automated water treatment.

Contents

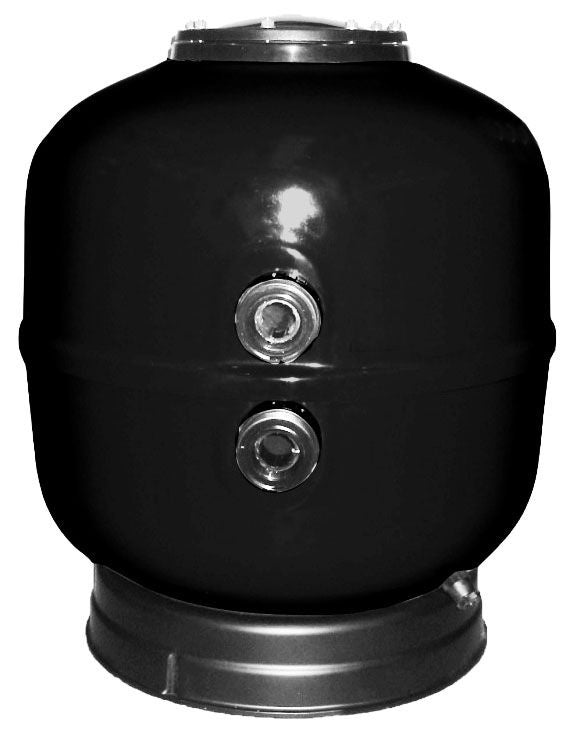

• AquaForte polyester sand filter Ø600 mm with side connection
• AquaForte Invereco IVS 100 variable swimming pool pump
• Technopool pH/Rx control
• Flow chamber for pH/Rx sensors including earth connection
• 3 inlets Ø63 mm
• 2 returns Ø63 mm, including bypass system Ø63 mm for heating
• Ø50 mm waste outlet
• Pre-assembled on plastic pallet with PE back wall
• Pressure tested with air
• 1 junction box for 6 plugs, equipped with 16A fuse and 30 mA leakage current protection

Important to know

• Suitable for swimming pools up to 75 m³
• Delivered excluding filter media

This new series of AquaForte heat pumps are 100% full inverter heat pumps. The heat pump has an ABS casing with a very modern design and is equipped with a Mitsubishi compressor and a WiFi module. The heat pump has a high efficiency with a COP of 14.5 and is suitable for both heating and cooling. - 10 Year warranty on the heat exchanger. - 5 Year warranty on the compressor. - Includes winter cover.

Fully installed filter system on a plastic pallet. Suitable for swimming pools up to 75m³. Completely new version of the TC300 filter pallet. Now equipped with 63mm piping (instead of 50mm) and side connections (instead of connections at the back of the pallet). The Victoria Silent pump has been replaced by the AquaForte Invereco VS pump. The plastic sand filter has been replaced by the Galaxy ICF530 multi-cartridge filter, allowing for a full season of filtration without maintenance! A Hydrospin Compact cyclone filter has also been installed, which prevents coarse/heavier dirt particles from entering the filter. The AquaForte B-Clear LS handles the water treatment via low-salt hydrolysis and automatic acid dosing. The system consists of:

- Galaxy ICF530 Multi Element Cartridge filter.
- Astralpool Hydrospin Compact cyclone filter.
- Aquaforte Invereco IVS 100 variable pool pump.
- Aquaforte B-Clear LS60 low salt hydrolysis system (incl. pH/Rx control).
- 3 inlets ∅63mm.
- 2 returns ∅63mm, incl. bypass system ∅63mm for heating.
- Pre-mounted on a plastic pallet with PE back wall.
- Pressure tested (air).
- Includes filter media (4 cartridges).
- 1 x junction box for 6 plugs with 16A fuse and 30mA residual current protection.

The AquaForte ECO IVS 150 is a powerful and energy-efficient variable speed pump, specially designed for medium to large swimming pools. With smart features, quiet operation and high performance, this pump is ideal for those who want to combine quality and ease of use.

Key features:

• Energy-efficient: Consumes only 1 kW (P1) at full load, ensuring significant energy savings in the long term.

• Quiet operation: The noise level is reduced to 36 dB, ideal for quiet environments without disruptive noise.

• Powerful performance:

  • Maximum flow: 25.5 m³/h

  • Maximum head: 18 meters

  • Recommended pool volume: 40 – 70 m³

• Smart controls:

  • Intelligent Touch Controller for intuitive and precise settings

  • 4 programmable timers for automatic daily operation

• One-touch backwash function: Easy and quick filter rinsing at the touch of a button.

• External control possible: Can be expanded with optional cable control (item number RD380, not included as standard).

• Easy installation: Supplied with 63 mm couplings for direct mounting on existing systems.

• Power supply: Suitable for 220 – 240V mains voltage.

The AquaForte ECO IVS 150 is the ideal choice for pool owners looking for reliability, energy efficiency and quiet performance, without compromising on power or functionality.

The AquaForte ECO IVS 100 is a high-quality variable-speed pool pump that combines maximum performance with minimal energy consumption. Thanks to its advanced technologies and quiet operation, this pump is the ideal choice for modern pool systems.

Key features:

• Energy-efficient: The pump displays the current power consumption, allowing you to easily save energy and monitor usage.

• Extremely quiet: The noise level is reduced to just 36 dB, ideal for quiet and comfortable outdoor environments.

• Smart programming: With 4 programmable timers, you can effortlessly set a daily cycle that suits your pool usage.

• Optional remote control: Can be expanded with a cable-controlled remote control for integration into automatic systems.

• Intelligent Touch Controller: User-friendly operation via a modern touchscreen.

• OneTouch backwash function: For quick and efficient cleaning at the touch of a button.

• Suitable for saltwater pools: Saltwater resistant up to 35 g/l salt, making it suitable for use in saline environments.

• Complete delivery: Includes 63 mm couplings for easy installation.

With the AquaForte ECO IVS 100, you choose reliability, comfort, and maximum control over your pool

The AquaForte ECO IVS 75 is a powerful and energy-efficient pump solution, designed for optimal performance in pond and swimming pool systems. With impressively low energy consumption and quiet operation, this pump is perfect for both residential and professional applications.

Key features:

• Energy-efficient: The current power consumption is displayed, allowing you to know exactly how much energy you are consuming and how much you can save.

• Quiet operation: Thanks to advanced technology, the noise level is reduced to just 36 dB – whisper-quiet!

• Advanced programming: Equipped with 4 programmable timers, ideal for fully automatic daily operation.

• External control (optional): Can be operated via an external cable control – convenient for integration into existing systems.

• Intelligent Touch Controller: Simple and intuitive operation with a modern touch screen.

• OneTouch backwash function: Easily cleans with the press of a button – time-saving and user-friendly.

• Saltwater resistant: Suitable for use in saltwater environments with up to 35 g/l salt, which significantly increases durability.

• Includes 63 mm couplings: Ready for installation with included standard couplings.

The AquaForte ECO IVS 75 combines technology, convenience, and durability in one smart pump. Perfect for anyone looking for a quiet, reliable, and efficient solution.

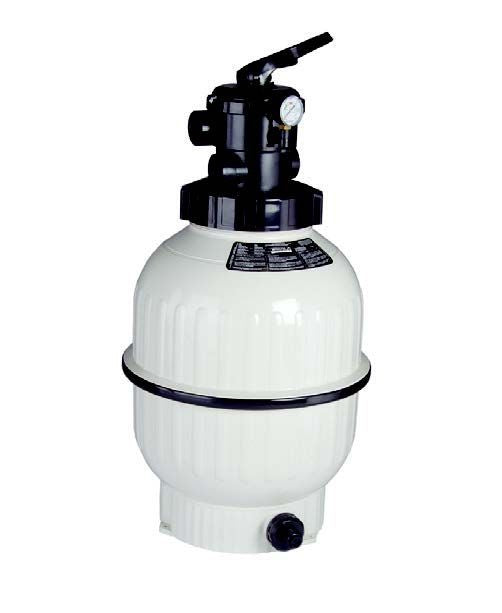

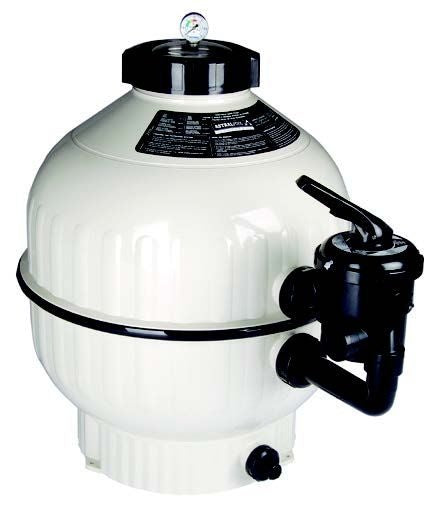

This advanced plastic housing, equipped with a built-in base, offers an outstanding price-performance ratio. Both the upper and lower parts of the housing are professionally heat-welded to ensure durability. Furthermore, this housing comes with convenient features, including a pressure gauge, a manual air vent, and a water drain.

The multi-port valve and the upper transparent cover are conveniently attached using a threaded ABS ring, making maintenance a breeze. With a maximum filtration rate of 50 m³/h/m², this housing can deliver impressive filtration performance. Furthermore, the maximum working pressure is 2.5 kg/cm², ensuring it meets the highest standards.

The housing features an elegant ivory color and complies with the DIN EN 16713-1 standards for quality and performance. Please note that the six-way valve must be ordered separately, as it is not included with the housing. Choose the best filtration efficiency and reliability with this high-quality plastic housing for various applications.

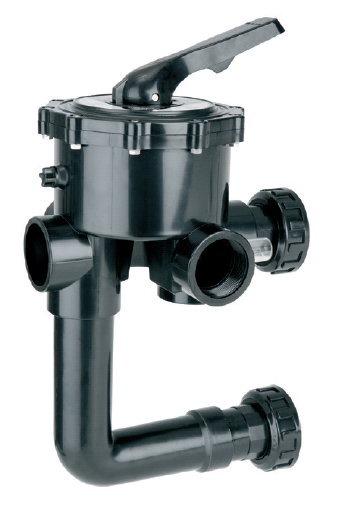

The valve set consists of the valve as well as the clean water and waste water connections (not glued).

The valve set consists of the valve as well as the clean water and waste water connections (not glued).

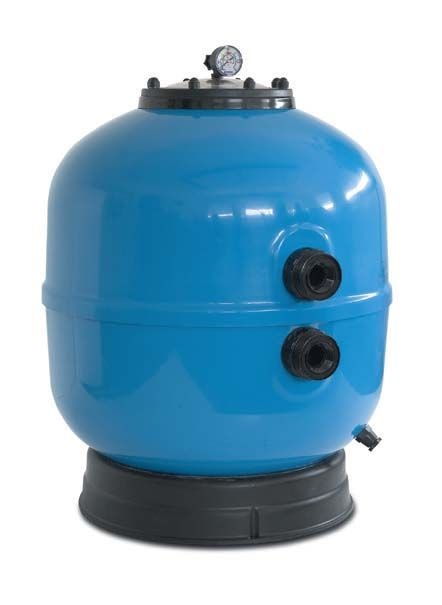

Aster filters are made of fiberglass-reinforced polyester. Polypropylene filter base. With transparent cover. Aster Large filters are designed with a higher tank height, which improves the filtration effect. Sand height approx. 0.8 m. Filters are supplied including pressure gauge and manual air vent. Maximum operating pressure 2.5 bar. Maximum filtration rate 50 m / hour. Saltwater resistant up to 4%. AstralPool Aster Large sand filters offer an optimal price-performance ratio.

Please note: for use in technical and basement rooms, a floor drain must be present for safety reasons! Filters must not be connected directly to the water supply network.

Injection-molded plastic housing with built-in base. Excellent value for money. The top and bottom sections are thermally welded. Supplied with pressure gauge, manual air vent and water drain. The multi-way valve and the top transparent cover are conveniently attached using a threaded ABS ring. Maximum filtration rate: 50 m³/h/m². Maximum operating pressure: 2.5 kg/cm². Ivory color. The Cantabric filters comply with DIN EN 16713-1. Supplied without six-way valve (order separately)!

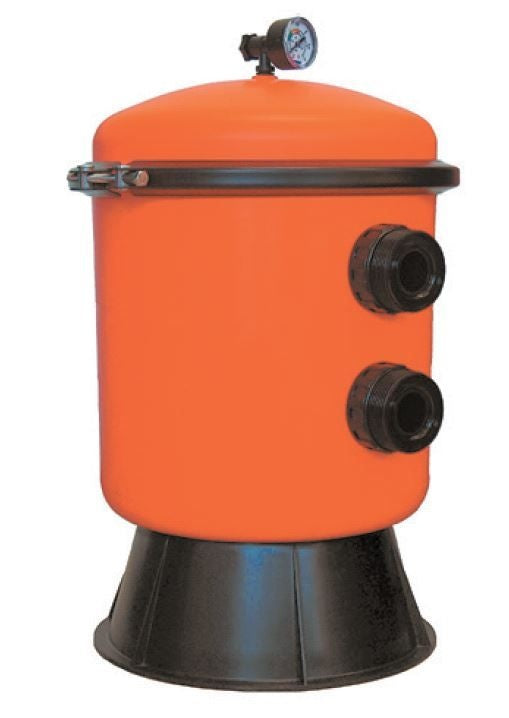

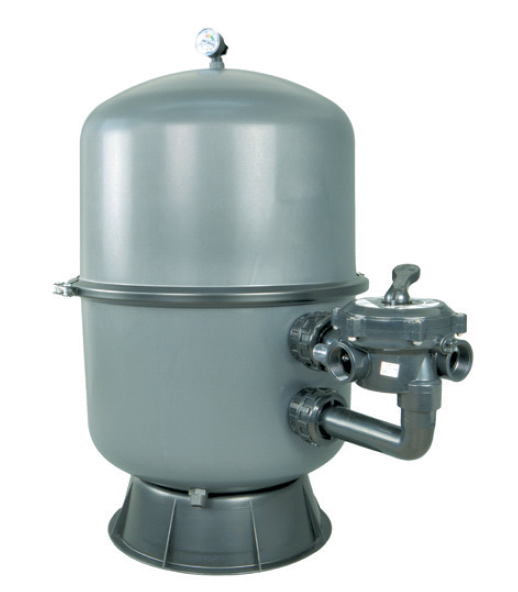

Two-piece sand filter made of fiberglass-reinforced polypropylene (PP). PP is resistant to almost all chemicals used in the swimming pool (except ozone). The filter parts are connected with a stainless steel clamp ring. The split halves of the filter are very easy to maintain and make sand replacement very easy, making Bilbao filters one of the most popular filters. Optional with standard 6-way valve shut-off set 34543 or with premium valve set 00599. All filters include a pressure gauge, manual drain and air vent. Maximum filter speed 50 m/h. Maximum allowable working pressure 1.5 bar. Mini Bilbao Ø 350 mm in orange, Ø 400, 500 and 600 mm in anthracite.

On the installation side, ensure that the maximum operating pressure in the filter tank does not exceed 1.5 bar. Air bubbles in the filter must be avoided. After backwashing or commissioning, the filter must be manually vented. The multi-way valve or ball valves in the installation must not be operated (closed) while the pump is running.

Polyester reinforced filter finished with a black gel coating. The filter is equipped with a transparent cover, pressure gauge and 1/4" air and water drain. Maximum temperature: 50°C. Maximum pressure: 2.5 bar. Multi-pass valve not included (order separately). Equipped with 1" collector arms and easily removable threaded diffuser.

Injection-molded plastic housing with built-in base. Excellent value for money. The top and bottom sections are thermally welded. Supplied with pressure gauge, manual air vent and water drain. The multi-way valve and the top transparent cover are conveniently attached using a threaded ABS ring. Maximum filtration rate: 50 m³/h/m². Maximum operating pressure: 2.5 kg/cm². Ivory color. The Cantabric filters comply with DIN EN 16713-1. Supplied without six-way valve (order separately)!

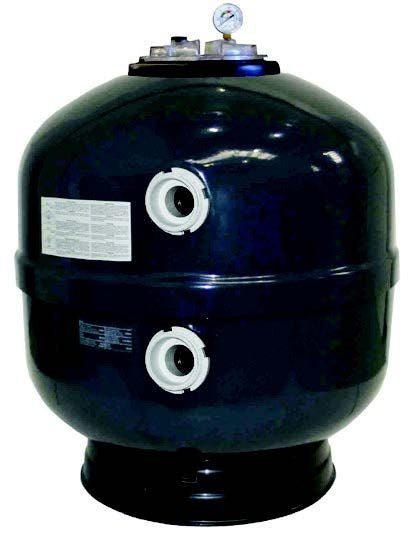

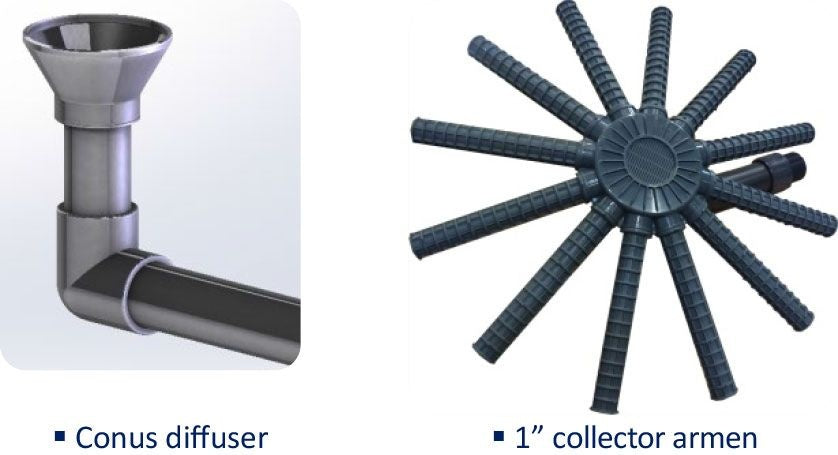

Made of polyester. Excellent finish. Color: anthracite grey. Water drain 1/4". Sand drain 2 ½" in the Ø780 and Ø925 models. Transparent screw-on lid. Equipped with 1" collector arms and diffuser made of durable plastic. Includes pressure gauge, manual water drain, automatic and manual air vent. Valve connection is compatible with Pentair multiport valve. Maximum pressure 2.5 bar. Multiport valve not included (order separately).

Made of polyester. Excellent finish. Color: anthracite grey. Water drain 1/4". Sand drain 2 ½" in the Ø780 and Ø925 models. Transparent screw-on lid. Equipped with 1" collector arms and diffuser made of durable plastic. Includes pressure gauge, manual water drain, automatic and manual air vent. Valve connection is compatible with Pentair multiport valve. Maximum pressure 2.5 bar. Multiport valve not included (order separately).

Aster filters are made of fiberglass-reinforced polyester. Polypropylene filter base. With transparent cover. Aster Large filters are designed with a higher tank height, which improves the filtration effect. Sand height approx. 0.8 m. Filters are supplied including pressure gauge and manual air vent. Maximum operating pressure 2.5 bar. Maximum filtration rate 50 m / hour. Saltwater resistant up to 4%. AstralPool Aster Large sand filters offer an optimal price-performance ratio.

Please note: for use in technical and basement rooms, a floor drain must be present for safety reasons! Filters must not be connected directly to the water supply network.

Two-piece sand filter made of fiberglass-reinforced polypropylene (PP). PP is resistant to almost all chemicals used in the swimming pool (except ozone). The filter parts are connected with a stainless steel clamp ring. The split halves of the filter are very easy to maintain and make sand replacement very easy, making Bilbao filters one of the most popular filters. Optional with standard 6-way valve shut-off set 34543 or with premium valve set 00599. All filters include a pressure gauge, manual drain and air vent. Maximum filter speed 50 m/h. Maximum allowable working pressure 1.5 bar. Mini Bilbao Ø 350 mm in orange, Ø 400, 500 and 600 mm in anthracite.

On the installation side, ensure that the maximum operating pressure in the filter tank does not exceed 1.5 bar. Air bubbles in the filter must be avoided. After backwashing or commissioning, the filter must be manually vented. The multi-way valve or ball valves in the installation must not be operated (closed) while the pump is running.
