Swimming pool lighting

Product Content – LED Spot 350 Plus – Ubbink

The LED Spot 350 Plus by Ubbink is a high-quality, energy-efficient lighting solution for gardens, ponds, and other outdoor spaces. This LED spotlight combines sustainable technology with a robust design, making it ideal for both decorative and functional applications.

Thanks to its efficient LED technology, the LED Spot 350 Plus provides bright, stable light with low energy consumption, contributing to environmentally friendly and cost-effective lighting. The light is perfectly suited for highlighting water features, plants, garden paths, or architectural elements, creating an atmospheric and inviting outdoor environment.

The spotlight’s design is weather-resistant and withstands a variety of weather conditions, including rain and temperature fluctuations. The compact and stylish housing allows for easy installation, while the durability of the materials ensures a long service life and minimal maintenance.

Key Benefits

• Energy-efficient and sustainable LED technology

• Bright and stable light for highlighting garden and pond features

• Weather-resistant design suitable for outdoor use

• Compact and stylish, easy to install

• Long service life and low maintenance

The LED Spot 350 Plus by Ubbink is therefore an ideal choice for anyone looking for a reliable, efficient, and attractive lighting solution to highlight gardens and ponds in an atmospheric way.

LED pool light in a complete set with transformer and convenient remote control. Thanks to the use of LED, this pool light is also energy-efficient. The LED pool light is available in red, green and blue and is also dimmable to your desired light level. 406 small LED lights create a beautiful combination of colours. An LED pool light will, of course, make your built-in pool a beautiful addition to your garden in the evening and at night.

Installing the pool light in the pool

This LED pool light can be easily installed in the side of the pool. You can install the light in a steel-walled or wooden built-in pool using the materials provided. Waterproof rings are also included to ensure the pool light is neatly installed.

• Nominal voltage 230 VAC / 50 Hz
• Power consumption 35 W
• Protection class III / IP 68
• Certification TUV GS, CE LVD and CE EMC

The Ubbink LED Spot has a diameter of 27.5 centimetres and is 7.5 centimetres deep. The LED spot is supplied with a 5-metre cable and a safety transformer with a 2-metre power cord and plug. The LED Spot comes with a two-year warranty.

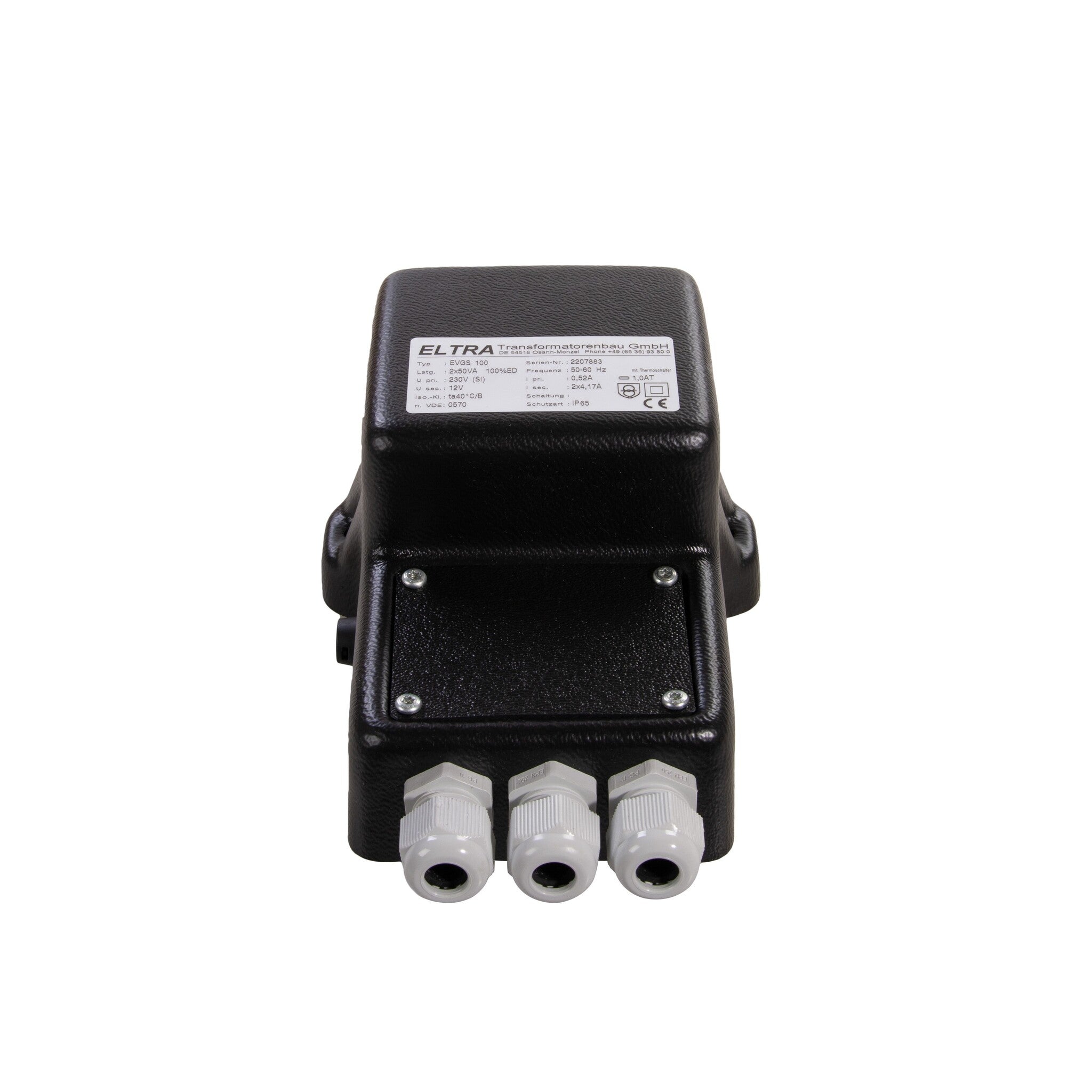

Eltra 100VA 230V-12V EVGS Transformer with 2 Outputs is a single-phase safety transformer for pool lighting. This transformer converts 230V mains voltage to safe 12V low voltage and is suitable for both traditional 300W halogen pool lighting and modern LED pool lighting.

The EVGS transformer is cast in resin, ensuring a robust and durable construction. The enclosure features a terminal box with cable glands and has an IP65 rating, protecting the transformer well against dust and water jets. For added safety, the product is protected against short circuits and overloads on the primary side via a built-in fuse and thermal switch.

Thanks to the two outputs, this transformer is ideal for pool installations requiring multiple light points or connections. The GS-tested design makes it a reliable choice for safe and stable pool lighting power supply.

Key features

• Single-phase safety transformer for pool lighting
• Converts 230V to 12V low voltage
• Power: 100VA
• Equipped with 2 outputs
• Suitable for halogen and LED pool lighting
• Cast in resin for durable protection
• Enclosure with terminal box and cable glands
• Protected against short circuits and overloads
• Equipped with built-in fuse and thermal switch
• GS tested
• Maximum ambient temperature: 40°C
• Insulation class: E
• IP rating: IP65
• Frequency: 50-60Hz
• Primary voltage: 230V

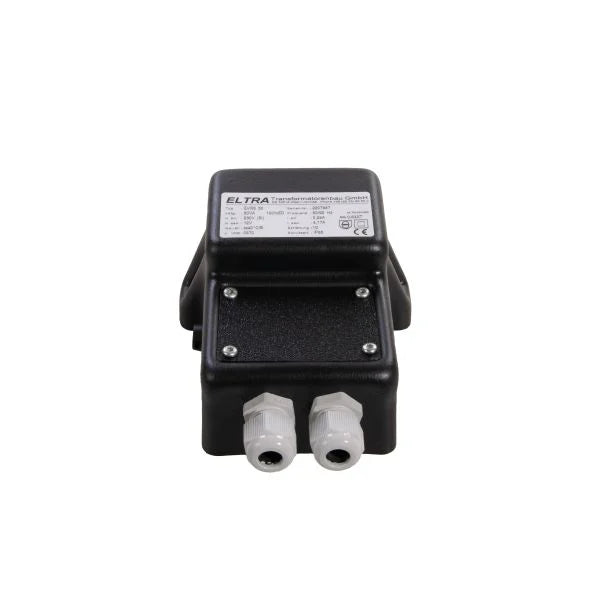

The AstralPool EVGS 50VA 230V-12V transformer with 1 output has been developed to provide a safe and stable power supply for pool lighting and other low-voltage components. The transformer converts 230V mains voltage to 12V low voltage, allowing connected pool lighting to operate safely in and around the pool area. According to MaJa Koi's product information, this is the AstralPool version with EAN 8717605134437 and SKU 76772.

This EVGS transformer is suitable for installations with a total lamp wattage of up to 50 watts and features 1 output. This makes it ideal for compact pool installations, single pool lights, or situations where an existing transformer needs to be replaced. When used with multiple lights, the single output can be technically split, provided the total wattage remains within the maximum load of 50W.

Seamaid electronic stabilized power supply, 230/20 V (DC) direct current max. 40 W output

This special Seamaid electronic stabilized power supply (IP67) with a direct current of 20 volts (DC) has been specially developed for Seamaid LED pool lighting. This power supply provides a very stable output voltage and is ideal for protecting the Seamaid LED lighting against voltage fluctuations on the primary connection. This ensures the maximum lifespan of the lighting and keeps energy consumption low.

Installation tips:

Always install pool lighting in accordance with electrical safety standards E50110, NEN3140 and NEN1010 for your safety and that of the users.
Use the correct power cable with the correct diameter.

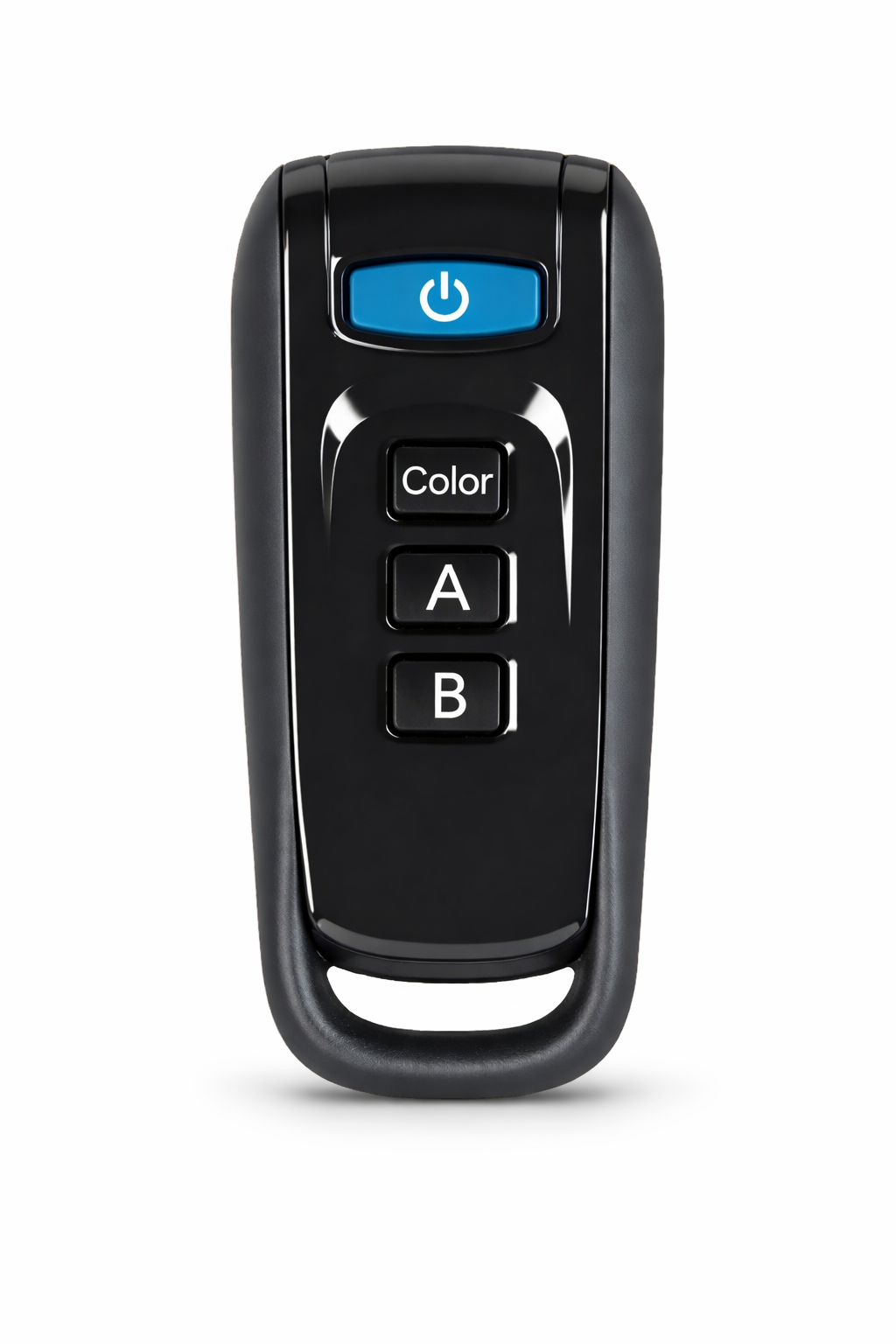

The TX868 remote control is the official replacement handheld transmitter for PL‑REM transformers from Spectravision and Duratech. This remote control operates on the reliable 868 MHz frequency, providing a long range and allowing you to easily control your pool lighting or connected devices. The TX868 is compatible with multiple PL‑REM models and is the perfect solution if your original remote control is defective or lost.

• Suitable for PL‑REM 60, PL‑REM 200 and PL‑REM 300

• Operates at 868 MHz for a stable and long range

• Easy control of pool lighting and color programs

• Replacement remote control for Spectravision and Duratech PL‑REM systems

• Compact and lightweight design

• Easy to pair with an existing PL‑REM controller

• Supports multiple handheld transmitters per system (up to 6)

• Durable and splash-proof design

https://cdn.webshopapp.com/shops/291436/files/495246157/hl-sg145147-tx868-linktouch-ready-or-not-e-v2103.pdf

What is it

The Seamaid Ecoproof LED pool light is a flat RGB pool light that can be easily installed without complex installation. Thanks to its smart design, this light is ideal for situations where traditional pool lighting may pose a risk of leakage.

What is it used for

For lighting various types of swimming pools, both in new installations and renovations.

What makes this model suitable

The light is mounted via a 1½” connection, making installation easy on an existing wall fitting or vacuum connection. The robust polycarbonate housing and IP68 protection ensure complete waterproofing and a long service life.

Benefits

• Flat LED pool light with easy installation
• RGB lighting with multiple color options
• Remote control included
• 100% waterproof Ecoproof version
• Suitable for almost all pool types
• Impact-resistant polycarbonate housing
• TÜV and CE certified

Specifications

Type: LED pool light
Model: Ecoproof flat
Lighting color: RGB

Number of colors: 11 fixed colors
Programs: 5 automatic programs
Beam angle: approx. 120°
Beam range: approx. 8 meters

Connection: 1½” external cable
Diameter: Ø 290 mm
Housing material: impact-resistant polycarbonate
Protection class: IP68
Electrical class: III
Service life: ±10,000 hours

Certification: TÜV / CE
Energy label: D

Included

Installation kit
Mounting clips
Remote control
White decorative flange

Important

Check beforehand whether the vacuum connection is suitable for installation. Some connections with a plug are not compatible with the Seamaid Ecoproof light.

Extra option

The light comes standard with a white flange. Decorative flanges are available separately in multiple colors and a metal version for a customized look.

Ecoproof Tubular Mini Projector Pool Light | 6500K Cool White – Seamaid

The Seamaid Ecoproof Tubular Mini Projector is a compact and reliable LED pool light, specially developed for situations where installing a conventional pool light may pose a risk of leakage. Thanks to its slim design and easy installation, this projector is ideal for swimming pools, whirlpools, spas, and pool steps.

The light emits a bright 6500K cool white light and provides excellent visibility and a sleek, modern underwater appearance.

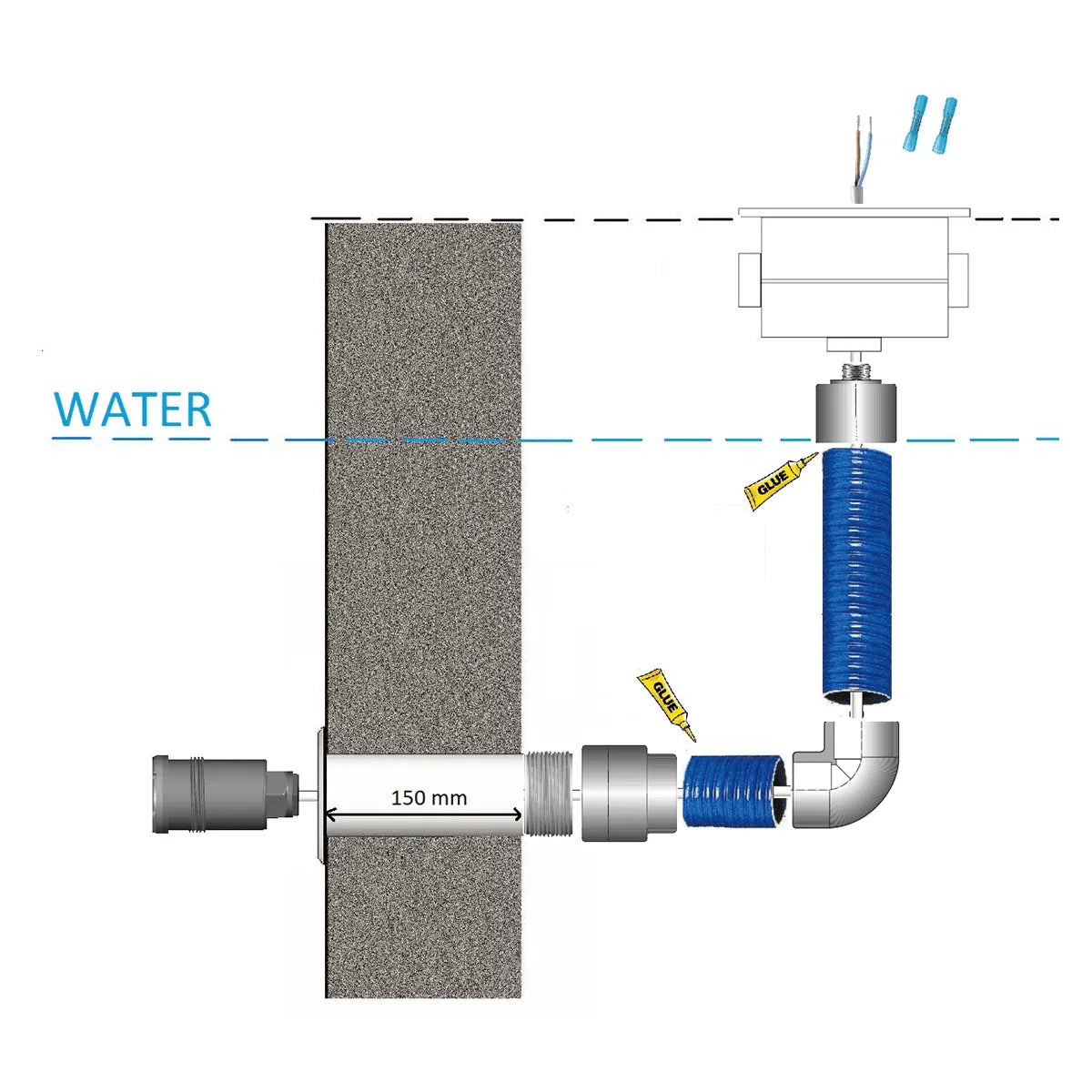

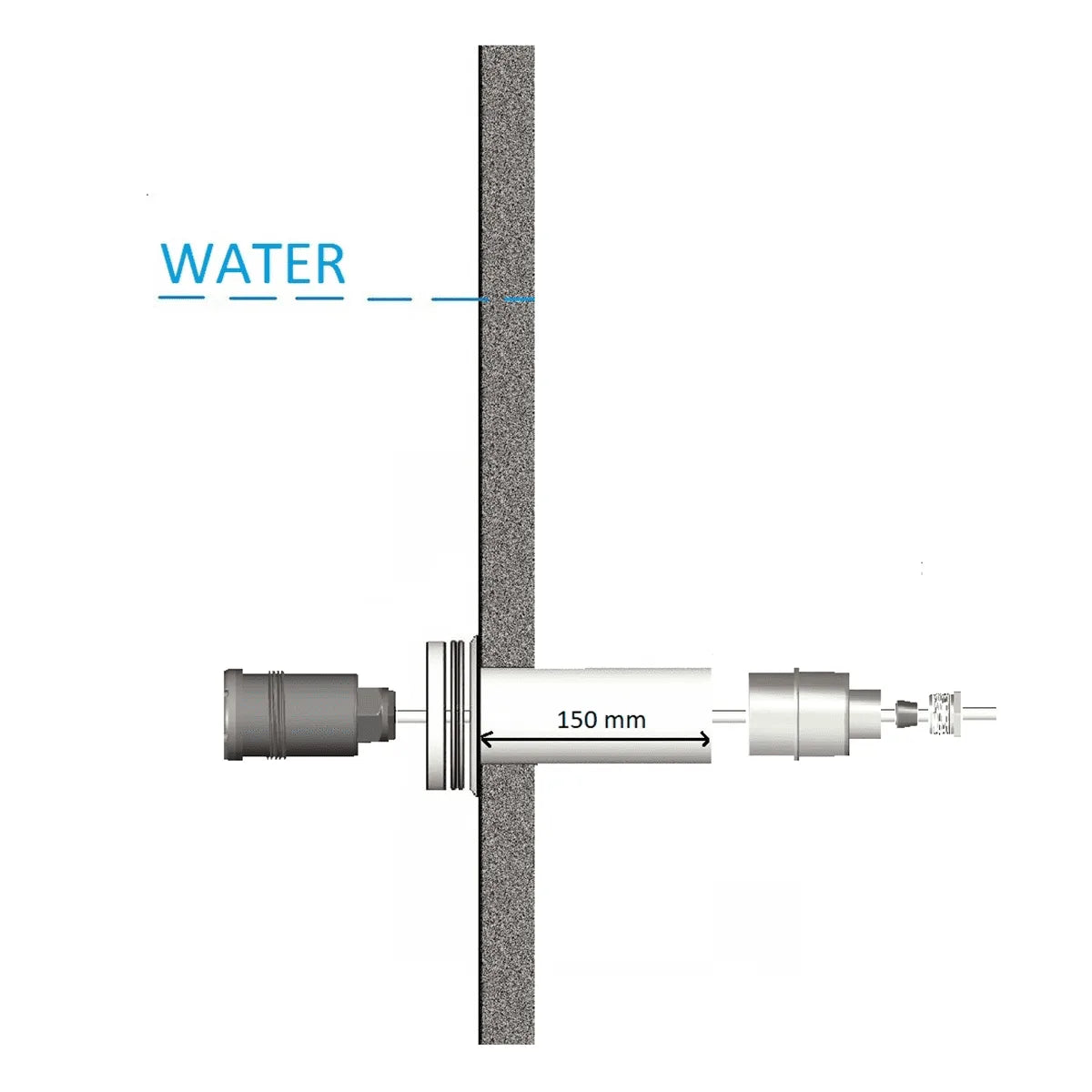

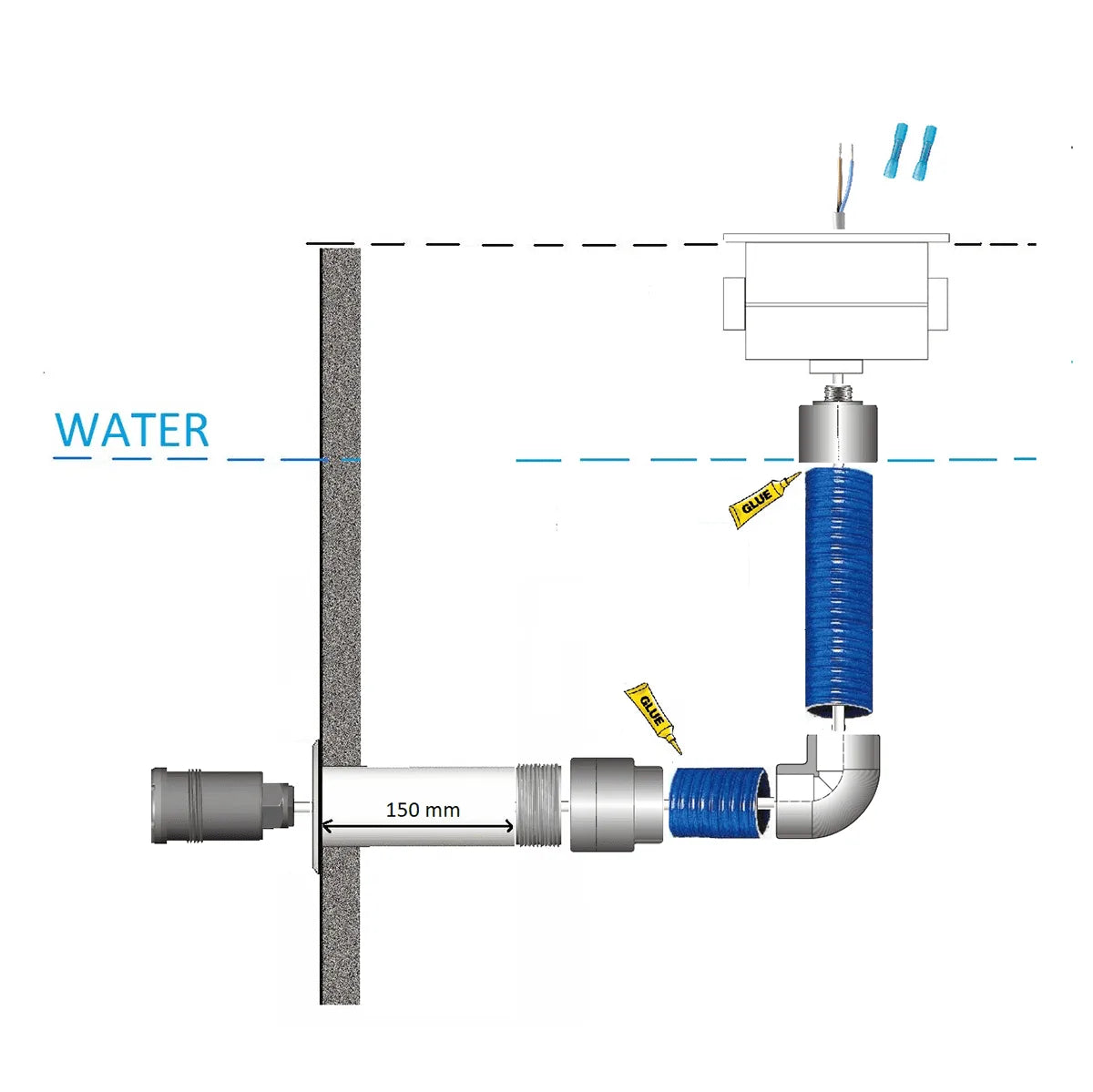

Easy and safe installation
The back of the projector is equipped with a 1½″ male stud, allowing installation without specialist tools. The light is easily mounted in a suitable wall fitting with a 1½″ pool hose connection, after which the rear part of the projector is screwed in.

For perfect waterproofing, optional Seamaid installation kits are available for both above-ground and in-ground pools.

Reliable LED technology
The Ecoproof Tubular Mini Projector is equipped with 18 high-quality LEDs and delivers a light output of 680 lumens with a low energy consumption of just 5 watts. The wide beam angle of 120° and a range of approximately 8 meters ensure even underwater illumination.

Durable and waterproof design
The housing is made of impact-resistant polycarbonate and meets the strictest requirements for underwater lighting. The light is TÜV certified, CE approved, has energy label D, and is completely waterproof according to IP68.

Important installation note
Before installation, check whether the pool hose connection used is suitable. Some models have a stop thread that is not compatible with this projector.

Key features

• Compact LED pool light

• Light colour: 6500K cool white

• Power: 5 W

• Light output: 680 lumens

• 18 LEDs

• Beam angle: approx. 120°

• Range: approx. 8 meters

• Connection: 1½″ M

• Housing: impact-resistant polycarbonate

• Completely waterproof IP68

• Class III

• Suitable for swimming pools, spas, whirlpools, and pool steps

• Lifespan: approx. 10,000 hours

Technical specifications

• Brand: Seamaid

• HRS number: HRS06011

• Type: Ecoproof / Tubular

• Light colour: 6500K cool white

• Number of LEDs: 18

• Wattage: 5 W

• Dimensions: Ø 50 mm

• Remote control: no

Electronic stabilized power supply | max. 40 W – Seamaid

The Seamaid electronic stabilized power supply was specially developed for the safe and reliable powering of Seamaid LED pool lighting. This power supply converts 230V AC to a stable 20V DC and effectively protects the connected lighting against voltage fluctuations.

Thanks to the stabilized output voltage, LED lamps continue to perform optimally, energy consumption is limited, and the maximum lifespan of the lighting is achieved.

Optimal protection for LED pool lighting
The power supply not only provides a constant voltage, but also stabilizes the current. This absorbs peaks on the primary connection, which is essential for sensitive LED technology in damp environments.

Waterproof and suitable for outdoor use
With protection class IP67, this power supply is completely waterproof and suitable for installation near the pool. This makes the power supply safe and reliable, even under harsh conditions.

Installation according to safety standards
For a safe installation, pool lighting should always be connected according to the applicable standards E50110, NEN3140 and NEN1010. Always use a power cable with the correct diameter to prevent voltage drop.

Main features

• Electronic stabilized power supply

• Specially for Seamaid LED pool lighting

• Input: 230V AC

• Output: 20V DC

• Maximum power: 40 W

• Very stable voltage and current

• Protects against voltage fluctuations

• Extends the lifespan of LED lighting

• Protection class IP67 (waterproof)

• Suitable for outdoor use

Technical specifications

• Brand: Seamaid

• HRS number: HRS06060

• Input voltage: 230V

• Output voltage: 20V DC

• Power: max. 40 W

• Protection: IP67

1-channel switching box | maximum 6 lights – Seamaid

The Seamaid 1-channel switching box is a practical and reliable solution for the wireless operation of up to six Seamaid pool lights. With this switching box, you can easily switch white lights on or off or adjust the colors of RGB lights, completely in sync.

The switching box operates exclusively on low voltage and has been specially developed for Seamaid pool lighting. Thanks to the wireless operation and easy connection, this system is ideal for both new installations and upgrades of existing pool lighting.

Wireless and synchronized operation
With the included radio remote control (2 buttons), you operate all connected lights at the same time. This keeps multiple projectors perfectly synchronized, ensuring a smooth and professional lighting experience in and around the pool.

Suitable for different voltages
The switching box supports both AC and DC low voltages and can control up to 6 lights at:

• 12 V AC – 20 A (max. 220 W)

• 14 V DC – 20 A (max. 280 W)

• 20 V DC – 20 A (max. 400 W)

• 24 V DC – 20 A (max. 450 W)

Easy installation
The connections are suitable for wiring up to 2 × 6 mm², allowing the switching box to be easily integrated without modifying the existing extra-low voltage power supply of the projectors.

Important points to note

• Works exclusively with Seamaid pool lighting

• The transformer must be ordered separately

• Radio operation depends on the environmental conditions around the pool

Main features

• 1-channel switching box for pool lighting

• Wireless operation

• Maximum 6 lights

• Suitable for white and RGB

• Low voltage: 12 V AC / 14–24 V DC

• Maximum 20 amperes

• Connections up to 6 mm²

• Remote control included

• Compact and user-friendly design

Technical specifications

• Brand: Seamaid

• HRS number: HRS06044

• Voltage: 12 V AC / 14–24 V DC

• Max. current: 20 A

• Max. power: up to 450 W (at 24 V DC)

• Number of lights: maximum 6

• Remote control: included

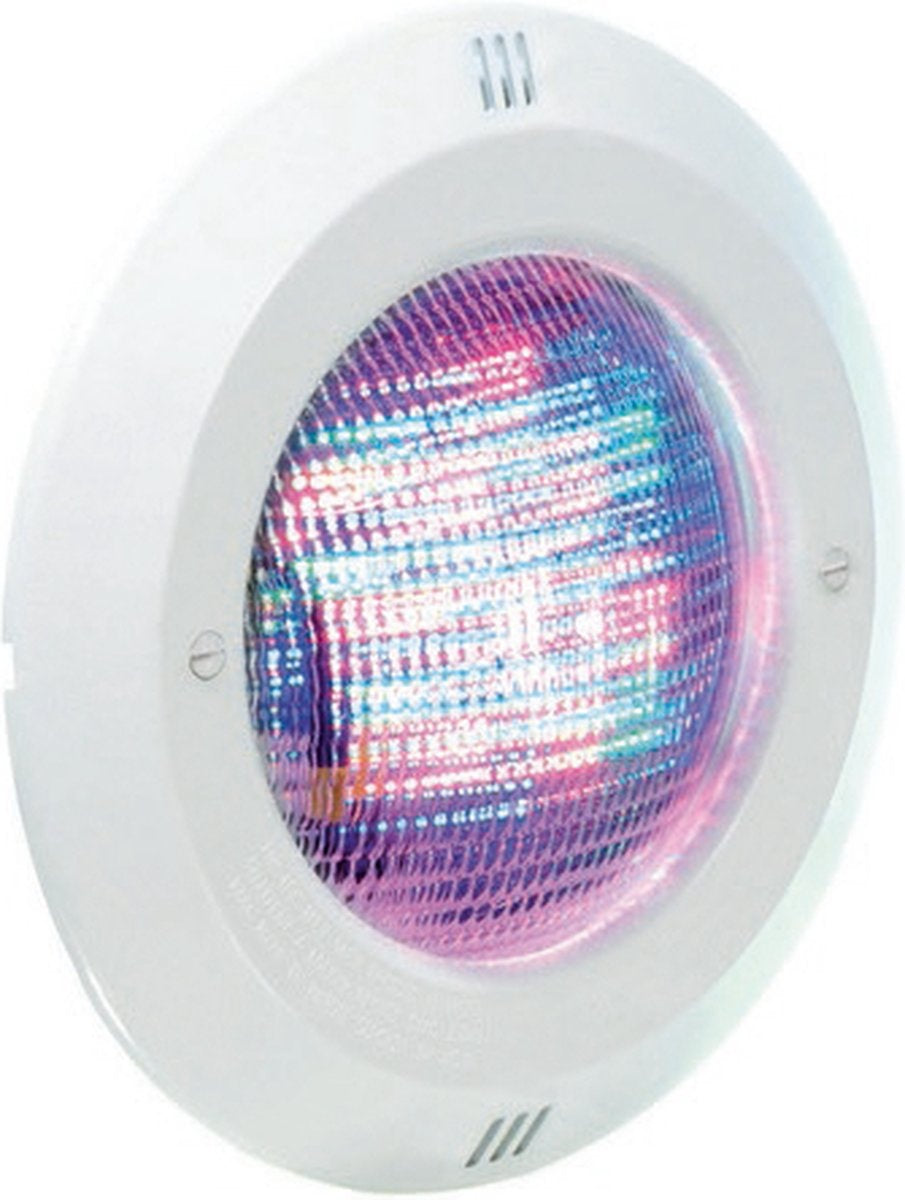

The PAR56 RGB 12VAC V1 wireless unit with a beige flange was developed for installations where aesthetics, flexibility, and durable light quality are paramount. This high-quality pool light delivers a full RGB color spectrum with precise color mixing, powerful lumen output, and smooth transition effects. This creates a dynamic lighting design suitable for both subtle evening ambiance and intensive color shows during events or hospitality applications. The 12VAC configuration makes the light compatible with virtually all standard PAR56 niches, allowing existing installations to be upgraded without major work.

The integrated wireless control offers significant operational advantages. Users can activate lighting modes, adjust intensity, and switch color programs from a central controller or remote control without physical interfaces or wired units. This increases the flexibility of daily operation and makes the system suitable for automated or time-controlled lighting. The internal driver technology operates with precise signal processing, ensuring consistent color and brightness even during prolonged, continuous use.

The construction is made of chemically resistant materials that easily withstand long-term exposure to chlorinated water, salt electrolysis, and varying water temperatures. The beige flange provides a neutral and visually understated finish that blends seamlessly with light-colored pool coatings, interior linings, and minimalist interior designs. This finish contributes to a uniform appearance, allowing the light to blend subtly into the overall design rather than dominate it. The robust sealing and high-quality gaskets protect the internal LED module against moisture intrusion and pressure fluctuations, significantly extending its lifespan.

The light is designed with energy management in mind. Thanks to efficient LED technology, the unit has low power consumption and minimal heat generation, which reduces stress on electrical components and increases the stability of the entire system. The optical distribution technology in the lens ensures an even distribution of light across the pool, without distracting hot spots or shadows. This results in a visually balanced underwater experience, regardless of the pool's size.

For installers, this PAR56 solution offers practical and time-saving installation. The construction fits precisely into the niche, with a solid locking mechanism that prevents movement and guarantees watertight integration. The reliability of the electronics and the structural stability lead to fewer maintenance intervals and lower lifecycle costs.

In essence, the PAR56 RGB 12VAC V1 wireless light with a beige flange offers a combination of advanced lighting technology, ease of use, durability, and aesthetics. The system is a strategic choice for those who want to integrate maximum atmospheric flexibility, long-lasting performance, and a high-quality finish into both residential and professional pool environments.

The Seamaid France Amber LED replacement lamp represents a high-quality lighting solution for pool environments requiring warm, atmospheric and energy-efficient underwater lighting. The amber light tone creates a unique ambiance that differs significantly from traditional cool-white pool lighting. This creates a softer and more inviting atmosphere, giving the water a luxurious appearance and making evening swimming a completely new experience. The warm hue is also ideal for wellness areas, spa environments and gardens focused on relaxation and visual elegance.

The lamp is designed with durable, UV-resistant and fully waterproof components, ensuring a long service life even in intensive pool installations. The LED technology used minimizes energy consumption without compromising on light output. Thanks to the advanced driver technology, the light output remains stable, while the low thermal profile contributes to safety, efficiency and a longer lifespan of the internal components. The Amber LED also produces a pleasant light distribution that prevents glare and illuminates the water surface evenly.

The retrofit design makes the lamp compatible with most standard pool niches, allowing for quick installation without modifications. Whether for renovation, upgrading or replacing existing lighting, the lamp fits seamlessly into a variety of configurations. The high-quality seals and robust construction ensure safe operation underwater, while the solid edge finish guarantees a neat visual integration.

In daily use, the amber lighting provides an atmospheric appearance that enhances the contours, depth and reflections of the pool. The warm color temperature invites relaxation and also makes the pool visually more attractive during evening hours, parties or quiet wellness moments. Because the LED lamp is low-maintenance, operational costs are kept to a minimum, making it extremely suitable for both private and semi-professional pools.

In summary, the Seamaid France Amber LED replacement lamp offers a premium combination of aesthetics, technical reliability and energy efficiency. The result is a future-proof lighting solution that transforms the pool into a warm, elegant and relaxing environment where ambiance is central.

The Seamaid France LED lamp with 6500K and an integrated RGB engine represents an advanced lighting module designed for durable use in pond and swimming pool installations. The 6500K daylight color provides exceptionally high brightness and accurate color rendering, ideal for operational visibility and accentuating water architecture. The RGB functionality also offers a wide range of adjustable color profiles, allowing dynamic lighting scenes and atmospheric lighting to be easily configured within the same unit.

The construction is manufactured from robust, waterproof components that provide optimal protection against pressure differences, UV exposure, and prolonged submersion. The energy-efficient LED technology minimizes thermal stress, reduces operating costs, and significantly extends the lifespan, making the lamp suitable for continuous use in critical environments. Thanks to the retrofit design, the lamp can be integrated into existing fixtures without technical modifications, making implementation fast and cost-efficient.

The internal thermal management and high-quality driver electronics ensure a stable light output, consistent color temperature, and reliable performance under variable operating conditions. This keeps the light quality constant, even during prolonged operational cycles or temperature fluctuations.

In summary, the Seamaid France LED lamp with 6500K and RGB offers a future-proof, energy-efficient, and multifunctional lighting platform that elevates both aesthetic experience and functional performance to a higher level within any water technology application.

The HRS 150 VA pool transformer was developed to safely and reliably power pool lighting. Since pool lights always operate on 12V~ (AC), this transformer provides a safe voltage in and around the pool.

With a power rating of 150 W, this transformer is suitable for both halogen and modern LED pool lights. The stable voltage extends the life of the lights and helps reduce energy consumption.

The transformer features separate windings and is fully encapsulated in self-extinguishing polyurethane resin within a sturdy plastic enclosure. This provides excellent protection against moisture and wear. It also features short-circuit protection with a glass fuse and thermal protection against overloading.

Technical specifications:

• Power: 150 VA / max. 150 W

• Primary voltage: 230-250 V

• Secondary voltage: 12 V AC

• Enclosure: plastic, encapsulated in self-extinguishing polyurethane resin

• Protection: glass fuse (short circuit) and thermal protection (overload)

• Standards: N-EN 61558-2-6

• CE certified, complies with European safety directives

Benefits:

• Safe and reliable for LED and halogen pool lighting

• Stable voltage for maximum lamp life

• Energy-efficient and durable design

• Protected against short circuits and overloading

Note: Always install in accordance with applicable safety standards (E50110, NEN3140 and NEN1010) to ensure optimal user safety.

The HRS 150 VA pool transformer is the ideal choice for anyone seeking a reliable and safe power supply for pool lighting.

The HRS 210 VA pool transformer provides a safe power supply for your pool lighting. Pool lights operate at 12V~ (AC) by default, making a reliable transformer essential for a safe installation.

With a maximum power of 210 W, this transformer is suitable for both halogen and modern LED pool lights. The stable voltage output extends the life of the lighting and helps save energy.

The transformer features separate windings and is fully encapsulated in self-extinguishing polyurethane resin within a sturdy plastic housing. This guarantees durability and protection against moisture. In addition, the transformer is protected against short circuits by a glass fuse and features thermal protection against overloading.

Technical specifications:

• Power: 210 VA / max. 210 W

• Primary voltage: 230-250 V

• Secondary voltage: 12 V AC

• Housing: plastic, encapsulated with self-extinguishing polyurethane resin

• Protection: glass fuse (short circuit) and thermal protection (overload)

• Standards: N-EN 61558-2-6

• CE certified, complies with European safety directives

Benefits:

• Suitable for LED and halogen pool lighting

• Safe 12V output voltage for use in water

• Reliable and energy-efficient

• Protected against overload and short circuits

Note: Always install pool lighting in accordance with the applicable safety standards (E50110, NEN3140 and NEN1010) to ensure maximum safety.

With the HRS 210 VA pool transformer, you choose a safe, durable and efficient solution for pool lighting.

The HRS 60 VA pool transformer is specially designed to safely and reliably power pool lighting. Since pool lighting always operates at 12V~ (AC), this transformer provides a safe voltage that ensures both LED and halogen bulbs function optimally.

With a maximum power of 60 W, this transformer is ideal for smaller or energy-efficient pool lighting systems. The stable voltage extends the lifespan of the bulbs and keeps energy consumption low.

The transformer features separate windings and is fully encapsulated in self-extinguishing polyurethane resin within a sturdy plastic housing. This guarantees a high level of protection against moisture and wear. In addition, the transformer is protected against short circuits by a glass fuse and features thermal protection against overloading.

Technical specifications:

• Power: 60 VA / max. 60 W

• Primary voltage: 230-250 V

• Secondary voltage: 12 V AC

• Housing: plastic, encapsulated with self-extinguishing polyurethane resin

• Protection: glass fuse (short circuit) and thermal protection (overload)

• Conforms to N-EN 61558-2-6

• CE certified, complies with European safety directives

Benefits:

• Suitable for LED and halogen pool lighting

• Safe 12V output voltage for underwater use

• Compact and energy-efficient design

• Protected against short circuits and overloading

Note: Always install pool lighting in accordance with the applicable safety standards (E50110, NEN3140 and NEN1010) to ensure the safety of users.

With the HRS 60 VA pool transformer, you choose a compact, safe, and reliable solution for pool lighting.

The HRS 300 VA pool transformer provides a safe and stable power supply for your pool lighting. Since pool lighting always operates at 12V~ (AC), a reliable transformer is essential for safety and optimal performance.

With a maximum power of 300 W, this transformer is suitable for both halogen bulbs and modern LED pool lighting. The stable voltage output extends the life of the bulbs and contributes to lower energy consumption.

The transformer features separate windings and is fully encapsulated in self-extinguishing polyurethane resin within a robust plastic housing. This ensures excellent protection against moisture and a long service life. In addition, the transformer is protected against short circuits with a glass fuse and features thermal protection against overloading.

Technical specifications:

• Power: 300 VA / max. 300 W

• Primary voltage: 230-250 V

• Secondary voltage: 12 V AC

• Housing: plastic, encapsulated with self-extinguishing polyurethane resin

• Protection: glass fuse (short circuit) and thermal protection (overload)

• Conforms to N-EN 61558-2-6

• CE certified, complies with European safety directives

Benefits:

• Suitable for both LED and halogen lighting

• Safe 12V output voltage for underwater use

• Optimal protection and long service life

• Low energy consumption due to stable voltage

Note: Always install pool lighting in accordance with the applicable safety standards (E50110, NEN3140 and NEN1010) for maximum user safety.

With the HRS 300 VA pool transformer, you choose safety, reliability and an energy-efficient solution for your pool lighting.

The Eltra EVGS 100VA transformer has been specially developed for pool lighting and provides a safe and reliable power supply. This single-phase safety transformer is suitable for both traditional 300W halogen lamps and modern energy-efficient LED pool lighting.

The transformer is fully encapsulated in cast resin, ensuring optimal protection and a long service life. Thanks to the robust terminal box with cable glands, installation is easy and safe. In addition, the transformer is protected against short circuits and overloads on the primary side by means of a built-in fuse and thermal switch.

With GS test certification and an IP65 rating, the transformer is highly resistant to moisture and dirt, making it ideal for pool environments.

Technical specifications:

• Power: 100VA

• Primary: 230V / 50-60Hz

• Secondary: 12V

• Outputs: 2

• Max. ambient temperature: 40°C

• Insulation class: E

• Protection: short circuit & thermal protection

• IP rating: IP65

• Fully encapsulated in cast resin

Benefits:

• Suitable for both halogen and LED lighting

• Safe and durable design

• Easy and reliable installation

• Protected against overload and short circuits

With the Eltra EVGS transformer, you choose a high-quality solution that combines safety, reliability and durability – perfectly suited to the requirements of modern pool lighting.
