The SuperFish PondClear Pro 36,000 UVC transformer and lamp holder is an essential replacement part for the proper functioning of your UVC pond filter. This combination provides the power supply for the UVC lamp and a stable, secure mounting within the unit.

A properly functioning transformer and lamp holder are crucial for the performance of a UVC system. The UVC lamp plays an important role in controlling suspended algae and keeping pond water clear. When the transformer or lamp holder fails, the lamp cannot function optimally, which directly affects the water quality.

This part is specifically designed for the SuperFish PondClear Pro 36,000 and integrates seamlessly with the existing system. Replacing worn or defective parts prevents failure and ensures that the UVC filter continues to operate effectively.

Installing a new transformer and lamp holder contributes to the reliable operation of your pond equipment and prevents unnecessary downtime. It is recommended to regularly check these components to maintain the performance of your UVC installation.

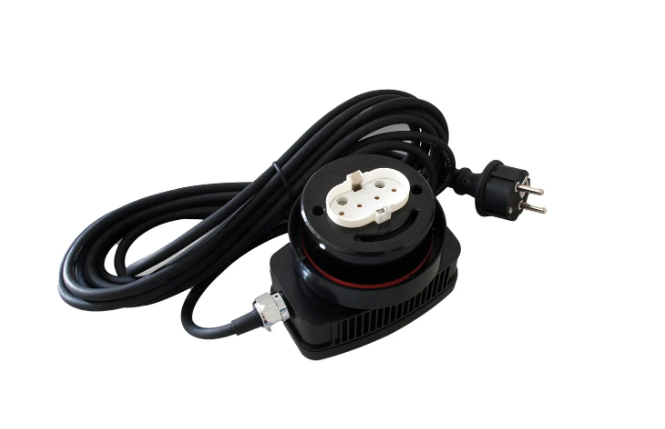

The SuperFish PondClear Pro 18,000 UVC transformer and lamp holder is a specific replacement part for the correct operation of the UVC unit within your pond filter system. This combination provides the power supply for the UVC lamp and ensures a stable, secure positioning of the lamp in the housing.

Within a UVC system, the reliable operation of the transformer and lamp holder is essential. The UVC lamp is responsible for reducing suspended algae and contributes directly to clear pond water. When the power supply or mounting does not function optimally, the effectiveness of the UVC unit decreases and the water quality can deteriorate quickly.

This part is designed for the SuperFish PondClear Pro 18,000 and connects to the existing configuration of this model. Replacing defective or worn components prevents malfunctions and ensures the continuity of your pond technology.

Through timely maintenance and replacement of critical parts such as the transformer and lamp holder, the UVC system continues to operate efficiently. This supports a stable pond environment and helps prevent algae growth and cloudy water.

The SuperFish PondClear 24,000 quartz glass is an essential replacement part for the UVC unit of your pond filter. This quartz sleeve protects the UVC lamp from direct contact with water while ensuring optimal transmission of UV radiation.

Quartz glass plays a crucial role in the UVC system. Unlike standard glass, quartz effectively transmits UV-C radiation, allowing the lamp to perform optimally. This is necessary for controlling suspended algae and keeping the pond water clear.

Over time, the quartz glass can become dirty or damaged, which negatively affects the performance of the UVC lamp. Buildup or limescale reduces UV transmission, thereby reducing the effectiveness of the system. Timely cleaning or replacement is therefore important to maintain the performance of the system.

This quartz glass is specifically designed for the SuperFish PondClear 24,000 and fits the existing UVC unit. By choosing the correct replacement part, you prevent leaks, reduced performance, and unnecessary wear on other components.

Regular maintenance of the quartz glass directly contributes to stable water quality and an efficiently operating UVC system.

The SuperFish UV 5 Watt service kit (>2023) is a complete maintenance set for UVC pond filters and provides all the essential components to maintain the operation of your UV system. Regular maintenance is necessary to ensure the effectiveness of a UVC system and to keep the water quality stable.

Inside a UVC filter, the lamp is a wear part that should be replaced annually to continue providing sufficient UV radiation. Over time, the light output decreases, reducing its effectiveness against suspended algae and harmful microorganisms. With this service kit, you immediately have the right components to replace it in time.

In addition to the lamp, a service kit usually contains additional components that contribute to the correct sealing and safe operation of the UVC unit. This prevents leaks and ensures that the installation continues to function reliably within your pond system.

This version is suitable for SuperFish UV 5 watt systems from model year 2023 onwards. By using original parts, compatibility is guaranteed and you prevent performance loss or malfunctions.

Periodic maintenance with a service kit extends the lifespan of your UVC equipment and contributes directly to clear and healthy pond water.

The SuperFish UV 5 Watt service kit (<2023) is a complete maintenance solution for UVC pond filters from older model series. This set contains the essential parts to restore and maintain the performance of your UVC installation, which directly contributes to clear and healthy pond water.

Within a UVC system, the UV lamp is a crucial wear part. Over time, the effectiveness of the lamp decreases, even if it still emits light. This reduces the capacity to reduce suspended algae and harmful microorganisms. By replacing it in time with a suitable service kit, you prevent performance loss.

In addition to the lamp, this maintenance set contains parts that ensure a correct seal and safe operation of the UVC unit. This is important to prevent leaks and to keep the installation functioning reliably within your pond technology.

This version is specifically suitable for SuperFish UV 5 watt systems from before 2023. The use of the correct, model-specific parts prevents compatibility problems and guarantees optimal operation of the system.

Regular maintenance with a service kit extends the lifespan of your UVC filter and helps to keep the water quality consistently at the desired level.

The SuperFish TopClear 36,000 connection kit is a practical coupling set for correctly connecting your TopClear pond filter. This set contains the necessary components to create a safe and leak-proof connection between the filter, pump, and pipes within your pond installation.

A proper connection is essential for the operation of a filter system. Poorly connected hoses or couplings can lead to leaks, pressure loss, and reduced flow, which directly affects the filter capacity and water quality. With the right connection kit, you prevent these problems and ensure stable operation of the system.

This connection kit is specifically designed for the SuperFish TopClear 36,000 and connects seamlessly to the connection points of this model. This makes installation easier and minimizes the chance of incompatibility or additional modifications.

The set is suitable for both replacing existing parts and for use in a new installation. By choosing original parts, the reliability of your pond equipment is guaranteed.

A correct connection contributes to efficient filtration, constant water circulation, and ultimately a healthy pond environment.

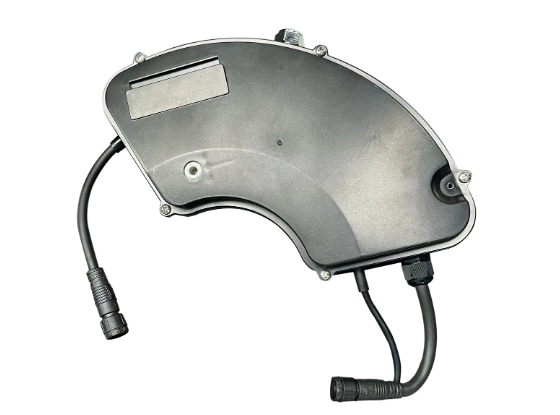

The SuperFish TopClear 36,000 55-watt UVC transformer is a crucial component for powering the UVC lamp within your pond filter system. This transformer provides a stable and correct voltage, allowing the UVC lamp to function optimally and maintain its maximum effectiveness.

The operation of a UVC filter is directly dependent on the performance of the lamp, which in turn is entirely dependent on a properly functioning transformer. If the transformer is defective or weakened, the lamp may operate less effectively or fail completely. This results in reduced control of suspended algae and microorganisms, leading to cloudy water.

This version is specifically designed for the SuperFish TopClear 36,000 with a 55-watt UVC unit. By using a suitable original part, compatibility is guaranteed, and you can prevent malfunctions, voltage issues, or reduced performance of your system.

Replacing a defective transformer promptly is essential to ensure the continuous operation of your pond filter. Combined with proper maintenance of the UVC lamp and other components, this keeps your system operating efficiently and helps maintain a stable and clear pond environment.

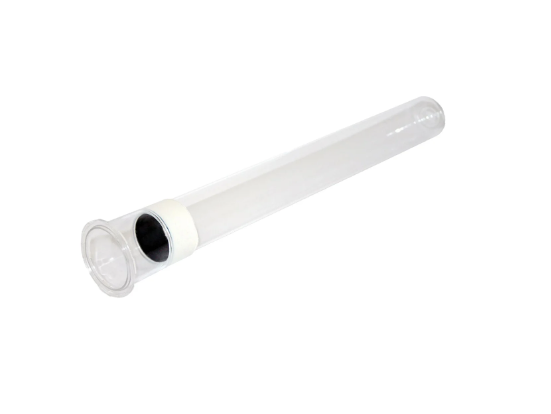

The SuperFish TopClear 36,000 quartz replacement set is a complete maintenance set for replacing the quartz sleeve and associated sealing components within your UVC unit. This set is essential for maintaining optimal operation of your pond filter system.

The quartz sleeve forms a protective layer around the UVC lamp and prevents direct contact with water. At the same time, the special material ensures that UV-C radiation is effectively transmitted. Unlike standard glass, quartz has high UV transmission, which is necessary for the proper operation of the UVC lamp and effective control of suspended algae.

Over time, the quartz sleeve can become fouled by limescale, dirt, or biofilm, or become damaged. This reduces UV transmission and, consequently, the effectiveness of the UVC system. By replacing it in a timely manner with a complete set, you prevent performance loss and keep your pond water clear.

The replacement set is specifically designed for the SuperFish TopClear 36,000 and contains the components required to install the quartz sleeve correctly and leak-free. This ensures safe operation and prevents problems such as leaks or reduced pressure in the system.

Regular maintenance and replacement of the quartz sleeve contribute to the efficient operation of your UVC filter and support stable water quality in the pond.

The SuperFish UV 11-18 watt service kit (>2023) is a complete maintenance set for UVC pond filters and contains the essential parts to keep your installation in optimal condition. This set is suitable for SuperFish UVC systems with a power of 11 to 18 watts from model year 2023 onwards.

A UVC installation depends on properly functioning components, with the UV lamp playing a crucial role. Although a lamp often still emits light, the effective UV radiation decreases over time. This results in reduced effectiveness against suspended algae and microorganisms. Timely replacement via a service kit prevents the performance of your pond filter from declining.

In addition to the lamp, this service kit contains parts that contribute to a proper seal and safe operation of the UVC unit. This helps prevent leaks and ensures that the installation continues to function reliably within your pond system.

This set is specifically designed for the newer generation of SuperFish UVC units (>2023), ensuring compatibility and a correct fit. The use of original parts prevents malfunctions and ensures that your system continues to perform as intended.

Regular maintenance with a service kit extends the lifespan of your UVC filter and directly contributes to clear, healthy, and stable pond water.

The SuperFish UV 11-18 watt service kit (<2023) is a complete maintenance set for UVC pond filters from older model series. This set contains the essential parts to restore and maintain the operation of your UVC installation, so that your pond water remains clear and balanced.

Within a UVC system, the UV lamp is a crucial wear part. Although the lamp often still produces visible light, the effective UV-C radiation decreases over time. This reduces the capacity to combat suspended algae and harmful microorganisms. By performing timely maintenance with a suitable service kit, you prevent the performance of your filter from declining.

In addition to the lamp, this service kit contains parts that ensure a correct seal and safe operation of the UVC unit. This prevents leaks and contributes to a reliable and durable operation of the system within your pond installation.

This version is specifically suitable for SuperFish UV systems of 11 to 18 watts from before 2023. By using model-specific parts, compatibility remains guaranteed and you prevent technical problems or reduced effectiveness.

Regular maintenance with a service kit extends the lifespan of your UVC filter and directly contributes to a stable water quality and a clear pond appearance.

The SuperFish UV 7-9 watt service kit (>2023) is a complete maintenance set for UVC pond filters and contains the essential parts to ensure your installation functions optimally. This set is suitable for SuperFish UVC systems with a power of 7 to 9 watts from model year 2023 onwards.

Within a UVC system, the UV lamp is an important wear part. Although a lamp often still emits light, the effective UV-C radiation decreases over time. This leads to reduced effectiveness against suspended algae and harmful microorganisms. By performing timely maintenance with a service kit, the performance of your system remains at its peak.

In addition to the lamp, this set contains parts that contribute to a correct seal and safe operation of the UVC unit. This helps prevent leaks and ensures stable and reliable operation within your pond installation.

This version is specifically tailored to the newer generation of SuperFish UVC units (>2023), ensuring compatibility and a correct fit. The use of original parts prevents malfunctions and ensures consistent performance of your system.

Regular maintenance with a service kit extends the lifespan of your UVC filter and contributes to clear, healthy, and stable pond water.

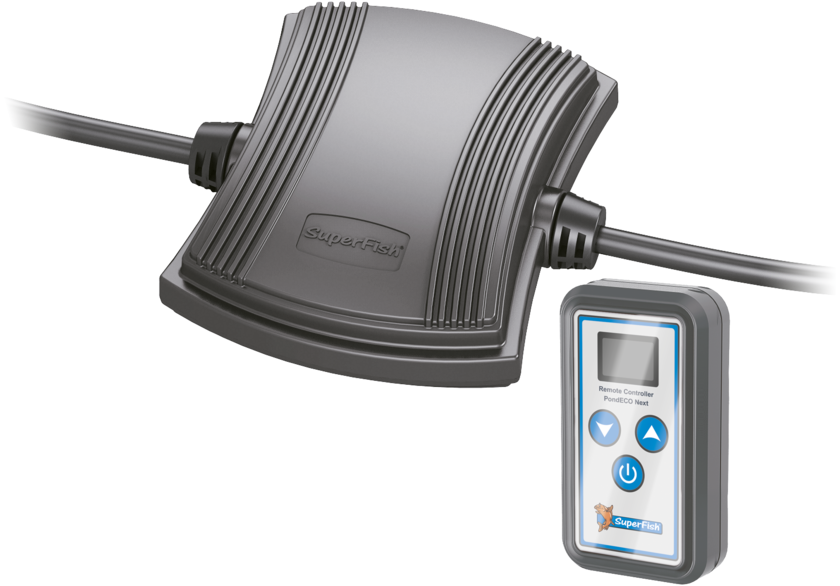

Superfish Pond Eco Next Controller: Smart Control for Your Pond Pump

The SuperFish Pond Eco Next Controller is specially designed to be paired with the SuperFish Pond Eco Next pumps. With this controller and the included remote control, you can easily switch the pump off and adjust the power, which provides efficient energy savings, especially in autumn and winter.

Pros and Cons of the Superfish Pond Eco Next Controller:

• Easy to install in line with the pump cable
• Simple way to reduce energy consumption
• Includes a 2-year warranty
• Only compatible with SuperFish Pond Eco Next models

With the included remote control, you can adjust the pump's power in stages, allowing you to reduce the power in 10 steps from the maximum capacity. Please note: the controller is splash-proof and must therefore always be placed in a dry location. Avoid submerging it in water or placing it in puddles in the garden.

Technical Specifications:

• 2-year warranty
• Water damage is not covered by the warranty

The PondClear 24000 Transformer 24 Watt - SuperFish is an original replacement part for the UV-C section of the SuperFish PondClear 24000. This transformer was specifically developed for the integrated 24 watt UV-C unit of this pond filter.

The transformer, also known as a ballast or starter, provides the electrical control for the UV-C lamp. When the existing transformer fails, the UV-C lamp can no longer function correctly. With this separate replacement transformer, the electrical component of the UV-C installation can be replaced specifically without having to replace the entire PondClear 24000 filter.

Unlike several smaller PondClear models, no separate red or green version is listed for this 24 watt transformer. The part is specifically offered as a replacement transformer for the PondClear 24000 with 24 watt UV-C.

Specially for the PondClear 24000

This transformer was developed for the SuperFish PondClear 24000 and is not a universal UV-C transformer.

The PondClear 24000 is a large pond filter in which mechanical and biological filtration are combined with UV-C treatment. The complete system is designed for ponds up to a maximum of 24,000 liters.

The pond water is guided through the filter by a separate pond pump. The filter material catches dirt and provides space for biological filtration. In addition, the water passes through the integrated UV-C unit.

This UV-C unit has a power of 24 watts and uses the transformer for the required electrical control.

Original 24 watt UV-C transformer

The transformer is specifically matched to the power and construction of the PondClear 24000.

A UV-C lamp cannot function without a suitable starter. The ballast ensures that the lamp is electrically controlled in the correct way.

When this part fails, the UV-C lamp may fail while the rest of the filter system may still function normally. For example, the pond pump can still circulate water through the filter and the filter material can still catch dirt.

With this separate transformer, the defective electrical component can be replaced specifically.

When do you replace the transformer?

When the UV-C lamp of the PondClear 24000 no longer functions, this does not automatically mean that the transformer is defective.

First check the UV-C lamp itself. A UV-C lamp is a wear part and may stop functioning over time. In addition, electrical connections can play a role when the lamp no longer switches on.

When a suitable and functioning 24 watt UV-C lamp also does not switch on, a defective transformer may be a possible cause.

Therefore, first check which part actually needs replacement before replacing the ballast.

Suitable 24 watt UV-C lamp

The PondClear 24000 uses a specific 24 watt UV-C PL lamp with G23 fitting.

The suitable lamp has a length of approximately 320 mm and is a special version for this system.

It is important to use a lamp that is actually suitable for the PondClear 24000 when replacing it. The same wattage alone is not enough to determine compatibility; the fitting and dimensions must also match.

The UV-C lamp is not included with this transformer.

UV-C lamp and quartz glass available separately

This product specifically concerns the 24 watt transformer.

Other parts of the UV-C installation are offered separately. For example, a specific replacement quartz glass is also available for the PondClear 24000.

The quartz glass forms the transparent barrier between the UV-C lamp and the passing pond water. When the quartz glass is damaged or heavily soiled, this part can be maintained or replaced separately.

A defective quartz glass does not automatically mean that the transformer also needs to be replaced. Conversely, a new quartz glass does not solve a defect in the electrical transformer.

Parts replaced separately

Several original SuperFish spare parts for the PondClear 24000 are available separately.

In addition to the transformer, separate parts are available for the quartz glass, the seal/cassette seal, the filter foam, and the hose connection.

This allows you to replace the specific part that is actually damaged or worn out during maintenance.

The transformer is designated as part A within the parts classification of the PondClear 24000.

Features of the PondClear 24000

To check whether this transformer is intended for your filter, some technical specifications of the complete PondClear 24000 are useful.

The PondClear 24000 has a:

• Maximum specified pond volume of 24,000 liters
• Integrated UV-C of 24 watts
• Maximum water flow of 12,000 liters per hour
• Inlet connection for 25/32/40 mm
• Outlet connection of 70/75 mm
• Dimensions of approximately 84 x 52 x 56 cm

This data refers to the complete PondClear 24000 pond filter and not to the separate transformer.

Do not confuse with other PondClear transformers

Different UV-C powers are used within the PondClear series.

Smaller models use 5, 7, or 13 watt UV-C, for example. The PondClear 24000, on the other hand, uses a 24 watt UV-C lamp and has its own specific transformer for this.

A ballast from a PondClear 3000, 6000, or 12000 is therefore not suitable as a replacement.

A random 24 watt ballast from another UV-C device is also not automatically compatible. The connection and construction must match the PondClear 24000.

Do not choose a red or green version

For several other PondClear models, it is important to distinguish between an older red and a newer green transformer.

For the PondClear 24000 Transformer 24 Watt, this distinction is not made. The official parts classification lists one specific 24 watt transformer for the PondClear 24000.

You therefore do not have to choose between a <2023 or >2023 version for this part, as with certain other PondClear models.

Always check whether you actually have a PondClear 24000 with 24 watt UV-C.

Safe replacement

Switch off the complete pond filter system before carrying out work on the UV-C installation. Remove the plugs from the socket and ensure that all electrical components are completely de-energized.

During replacement, also check the cables, connections, and surrounding components for visible damage or moisture.

Mount the new transformer in the designated position and ensure that all components are correctly reconnected and sealed before switching the system back on.

A UV-C lamp must never be switched on outside the housing designed for it. In addition, never look directly at a lit UV-C lamp.

Important points

• Original replacement part from SuperFish
• Specifically for the PondClear 24000
• Power: 24 watts
• Type: UV-C transformer/ballast
• For the integrated 24 watt UV-C
• Designated as part A in the parts classification
• Suitable UV-C lamp: 24 watts
• Fitting for suitable UV-C lamp: G23
• Length of suitable UV-C lamp: approximately 320 mm
• UV-C lamp not included
• Quartz glass not included
• Not a universal 24 watt UV-C transformer
• Not suitable for PondClear models with a different UV-C power
• No separate red or green version is listed for this part
• Suitable as a targeted replacement part for a defective PondClear 24000 transformer

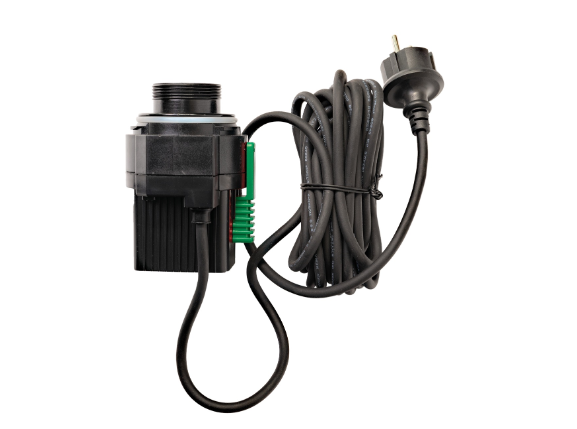

The PondClear 12000 Transformer 13 Watt >2023 - SuperFish is an original replacement part for the UV-C section of the newer SuperFish PondClear 12000 pond filters. It is the green version of the ballast and was specially developed for the integrated 13 watt UV-C unit.

The transformer, also known as a ballast or starter, provides the electrical control for the UV-C lamp. When the existing ballast becomes defective, the UV-C lamp can no longer be switched on correctly. With this separate replacement transformer, this specific part can be replaced without having to replace the entire PondClear filter.

When choosing the correct spare part, it is important to distinguish between the different generations. For the older PondClear 12000, there is a red 13 watt transformer. This variant is the green version for the newer generation.

Green version for the newer PondClear 12000

SuperFish distinguishes between an older red and a newer green UV-C ballast for the PondClear 12000.

This variant is the:

PondClear 12000 – 13 Watt – Green – Newer version

The green version is often referred to in trade as >2023. In SuperFish's current parts classification, this version is linked to model >2024. Because the year of production, year of sale, and model generation do not always coincide exactly, it is best to check the color of the existing transformer if in doubt.

If your PondClear 12000 currently has a green 13 watt ballast, then this version is intended for that. For an older PondClear 12000 with a red ballast, a separate red variant is available.

Original 13 watt UV-C ballast

The ballast is specifically matched to the 13 watt UV-C of the PondClear 12000.

A UV-C lamp needs a suitable starter to function. The ballast provides the necessary electrical control for the lamp.

When the ballast becomes defective, the UV-C lamp may fail while the rest of the filter system may continue to function. The pond water can then still flow through the mechanical and biological filter material, but the additional UV-C treatment is no longer active.

With this separate transformer, the electrical part of the UV-C can be replaced specifically.

Specifically for the PondClear 12000

This ballast was developed as a spare part for the SuperFish PondClear 12000.

The PondClear 12000 is a pond filter in which mechanical filtration, biological filtration, and UV-C treatment are combined. The complete filter is suitable for ponds up to a maximum of 12,000 liters and features an integrated 13 watt UV-C.

The PondClear 12000 uses several types of filter material. The passing pond water is first mechanically cleaned, after which the biological filter material offers a large surface area for beneficial bacteria.

The UV-C unit forms an additional step within this filter system.

First check which part is defective

When the UV-C lamp of the PondClear 12000 no longer functions, this does not automatically mean that the ballast is defective.

The UV-C lamp itself may also need replacing. In addition, a damaged connection, cable, or lamp holder can cause the lamp not to function correctly.

Therefore, first check whether the UV-C lamp is still good. When a suitable and functioning 13 watt UV-C lamp also does not switch on, a defect in the ballast or electrical connection can be a possible cause.

This prevents a transformer from being replaced while the problem is elsewhere in the UV-C unit.

UV-C lamp not included

This product specifically concerns the green 13 watt ballast/transformer.

The corresponding UV-C lamp is not included. When only the lamp is worn out or defective, it can be replaced separately without also having to replace the ballast.

The quartz glass and the seals around the UV-C construction are also not part of this transformer.

Difference with the UV-C service kit

For the newer PondClear 12000, other UV-C spare parts are also available in addition to the green transformer.

The PondClear 12000 Transformer 13 Watt Green is intended for the electrical part and provides the control of the UV-C lamp.

The corresponding green UV-C service kit is specifically intended for parts around the quartz glass and the seal of the UV-C construction.

When, for example, only the quartz glass is damaged, the transformer does not need to be replaced. In the case of a defective ballast, replacing the quartz glass will not solve the electrical problem.

Features of the PondClear 12000

To check if you have the right filter, it is useful to know a few characteristics of the complete PondClear 12000.

The PondClear 12000 has a:

• Maximum stated pond volume of 12,000 liters
• Integrated UV-C of 13 watts
• Inlet connection for 25/32/40 mm
• Outlet of approximately 75 mm
• Dimensions of approximately 55 x 38 x 43 cm

The PondClear 12000 Kit is combined with a PondECO 4900 pond pump. This pump has a capacity of approximately 5,300 liters per hour and a power consumption of 29 watts.

This data refers to the complete filter system and not to the separate transformer. It can, however, help identify the correct PondClear model.

Not suitable for other PondClear models

This 13 watt ballast is specifically intended for the PondClear 12000.

Different UV-C wattages are used within the PondClear series. For example, the PondClear 3000 has a 5 watt UV-C and the PondClear 6000 has a 7 watt UV-C. Separate ballasts are available for these models.

Therefore, do not use this 13 watt version as a replacement for a transformer with a different wattage.

Compatibility is also not automatically guaranteed for other UV-C devices with a similar lamp wattage.

No universal 13 watt ballast

The PondClear 12000 Transformer 13 Watt Green is a model-specific SuperFish spare part.

Another UV-C unit may also use a 13 watt lamp, but that does not mean that the electrical connection, mounting, and construction are the same.

Therefore, always check before ordering:

• The filter model: PondClear 12000
• The UV-C wattage: 13 watts
• The color of the existing ballast: green
• Whether it is the newer version

This prevents you from ordering a ballast for the wrong PondClear generation.

Safe replacement

Switch off the entire pond installation before performing work on the UV-C. Remove the plugs from the socket and ensure that the installation is completely de-energized.

During replacement, also check the cables, connections, and surrounding parts for damage and moisture. Place the new ballast according to the construction of the original part and ensure that everything is correctly reassembled and sealed before the installation is switched on again.

Never switch on a UV-C lamp outside the housing designed for it and never look directly at an switched-on UV-C lamp.

Repair your PondClear 12000 specifically

Because different parts of the PondClear are available separately, the entire pond filter does not need to be replaced immediately in the event of a defect.

When the filter housing, filter materials, and other parts are still functioning properly and only the UV-C ballast is defective, the transformer specifically can be replaced.

With the PondClear 12000 Transformer 13 Watt >2023 - SuperFish, you replace the green 13 watt ballast of the newer PondClear 12000 and the existing filter system can continue to be used.

Important points

• Original replacement part from SuperFish
• Suitable for the PondClear 12000
• For the newer version
• Product is referred to as model >2023
• Green version
• Power: 13 watts
• Type: UV-C ballast/transformer
• For the integrated 13 watt UV-C
• Specifically for the PondClear 12000
• For replacing a defective UV-C ballast
• UV-C lamp not included
• Quartz glass not included
• UV-C service kit not included
• No universal 13 watt UV-C ballast
• Not suitable for PondClear models with a different UV-C wattage
• For the older PondClear 12000, a red 13 watt ballast is available
• Always check before ordering whether the existing ballast is the green version

The PondClear 12000 Transformer 13 Watt <2023 - SuperFish is an original replacement part for the UV-C section of the older SuperFish PondClear 12000 pond filters. This version is specifically intended for models from before 2023 and is recognizable by the red version.

The PondClear 12000 is equipped with an integrated 13 watt UV-C unit. To allow the UV-C lamp to function correctly, a suitable starter is required. This transformer, also known as a ballast, provides the electrical control of the lamp.

When the original ballast becomes defective, the UV-C lamp can no longer be switched on correctly. With this separate SuperFish transformer, specifically the electrical part of the UV-C can be replaced, without having to replace the complete PondClear 12000 filter.

Red version for models <2023

For the PondClear 12000, there are several generations of the UV-C ballast. It is therefore important to check before ordering which version is mounted on the existing filter.

This variant concerns the:

PondClear 12000 – 13 Watt – Red – Model <2023

For the newer generation, there is also a green 13 watt ballast. The red and green versions are separate spare parts.

If you have an older PondClear 12000 with a red ballast, then this version is intended for that. In case of doubt, always check both the model and the color of the existing part.

Original 13 watt UV-C ballast

This transformer is specifically tuned to the 13 watt UV-C of the PondClear 12000.

A UV-C lamp cannot function without a suitable starter. The ballast provides the necessary electrical control of the lamp.

When the ballast no longer works, it may happen that the rest of the pond filter still functions. For example, the water can still be guided through the filter material, while the UV-C lamp no longer switches on.

With this separate ballast, exactly this part of the filter system can be specifically replaced.

Specifically for the PondClear 12000

The transformer was developed as a spare part for the SuperFish PondClear 12000 with 13 watt UV-C.

It is not a universal ballast that can simply be connected to other PondClear models or UV-C devices. Within the PondClear series, different lamp wattages are used.

For example, the PondClear 3000 uses a 5 watt UV-C and the PondClear 6000 a 7 watt UV-C. The PondClear 12000, on the other hand, has a 13 watt UV-C and needs this suitable ballast for that.

Therefore, always check the exact filter model before ordering a new transformer.

When should the transformer be replaced?

When the UV-C lamp of the PondClear 12000 no longer lights up, the transformer does not automatically have to be defective.

First check the UV-C lamp itself. A UV-C lamp is a wear part and can stop functioning after prolonged use. Also connections and the lamp fitting can play a role when the lamp no longer switches on.

If a suitable and functioning 13 watt UV-C lamp also does not work, then the ballast can be a possible cause.

Therefore, before replacing parts, check:

• The UV-C lamp
• The lamp fitting
• The electrical connection
• The cable
• The ballast

This way you can more specifically determine which part needs to be replaced.

UV-C lamp not included

This product specifically concerns the red 13 watt ballast/transformer.

The 13 watt UV-C lamp itself is not included. When only the lamp is worn out or defective, it can be replaced separately without having to renew the transformer as well.

The quartz glass and the seals of the UV-C unit are also not included with this transformer.

Difference with the UV-C service kit

For the older PondClear 12000, in addition to this red ballast, separate parts for the UV-C construction are also available.

SuperFish uses a red UV 11-18 Watt Service Kit for this generation. This service kit has a different function than the transformer.

The PondClear 12000 Transformer 13 Watt provides the electrical control of the UV-C lamp.

The UV-C service kit contains parts around the quartz glass and the seal of the UV-C construction.

When, for example, the quartz glass is damaged, you do not automatically have to replace the ballast. Conversely, a new quartz glass does not solve a defective ballast.

Part of the PondClear 12000

The PondClear 12000 is a pond filter system in which mechanical and biological filtration are combined with UV-C treatment.

The complete filter is developed for ponds up to a maximum of 12,000 liters and has an integrated 13 watt UV-C.

The PondClear 12000 was also delivered as a complete filter set. With this kit, the filter is combined with a PondECO 4900 pond pump.

This data concerns the complete PondClear 12000 filter system and not the separate transformer, but is useful to check if you have the right model.

Not suitable for other PondClear models

This ballast is specifically intended for the 13 watt version of the PondClear 12000.

Therefore, do not use it for, for example:

• PondClear 3000 with 5 watt UV-C
• PondClear 6000 with 7 watt UV-C
• PondClear 24000
• Other SuperFish UV-C devices

Even when another device uses a UV-C lamp with a comparable wattage, this does not automatically mean that the connection and ballast are compatible.

Check red and green well

For the PondClear 12000, both a red and green 13 watt ballast are available.

The red version belongs to the older model generation and is designated as model <2023.

The green version is intended for the renewed generation. When ordering spare parts, the color of the existing ballast is therefore an important check.

Do not only look at the year in which the filter was purchased. After all, a filter may have been in stock at a supplier or store for a long time. Therefore, also actually check which color ballast is mounted on the filter.

Safe replacement

Because the ballast is an electrical part of the UV-C installation, the PondClear must be completely de-energized before you carry out work.

Switch off the pond pump and UV-C and remove the plugs from the socket. Open the UV-C construction only when you are sure that there is no longer any voltage on the installation.

During replacement, also check the cables, connections and surrounding parts for visible damage or moisture.

Mount the new ballast according to the construction of the existing filter and make sure that all parts are correctly mounted and sealed again before the installation is switched on again.

A UV-C lamp may never be switched on outside the housing intended for it. Also never look directly at an switched-on UV-C lamp.

Repair your PondClear 12000 specifically

SuperFish offers several parts of the PondClear 12000 separately. In addition to the transformer, for example, the UV-C service kit, drain cap, activated carbon mat and replacement filter foam are also available separately.

This allows you to specifically maintain an existing filter system and only replace the part that is actually defective or worn out.

With the PondClear 12000 Transformer 13 Watt <2023 you specifically replace the red UV-C ballast of the older PondClear 12000.

Important points

• Original replacement part from SuperFish
• Suitable for the PondClear 12000
• For models <2023
• Red version
• Power: 13 watt
• Type: UV-C ballast/transformer
• For the integrated 13 watt UV-C
• Specifically for the older PondClear 12000
• For replacement of a defective UV-C ballast
• UV-C lamp not included
• Quartz glass not included
• UV-C service kit not included
• Not suitable for the PondClear 3000
• Not suitable for the PondClear 6000
• Not suitable for the PondClear 24000
• No universal 13 watt UV-C ballast
• For the newer PondClear 12000, a green 13 watt ballast is available
• Always check before ordering if the existing ballast is the red version

The PondClear 6000 Transformer 7 Watt <2023 - SuperFish is an original replacement part for the UV-C section of the older SuperFish PondClear 6000 pond filters. This version is recognizable by its red color and is specifically intended for PondClear 6000 models from before 2023.

The PondClear 6000 features an integrated 7 watt UV-C unit. The transformer, also known as a ballast or starter, provides the electrical control for the UV-C lamp. When this ballast becomes defective, the UV-C lamp can no longer function correctly.

With this separate SuperFish transformer, the specific electrical component can be replaced. This means you do not have to replace the entire PondClear 6000 pond filter when only the ballast is defective or damaged.

Red version for PondClear 6000 <2023

There are different versions of the UV-C ballast for the PondClear 6000. It is therefore important to check which variant is present on the filter before ordering.

This version is the:

PondClear 6000 – 7 Watt – Red – Model <2023

For the newer generation, there is also a green 7 watt ballast.

The color of the existing ballast is therefore an important check when choosing the correct spare part. If you have an older generation PondClear 6000 with a red ballast, this version is intended for that.

Original 7 watt UV-C ballast

This transformer is specifically matched to the 7 watt UV-C lamp of the PondClear 6000.

A UV-C lamp needs a suitable starter to function correctly. The ballast provides this electrical control.

When the ballast no longer functions, the rest of the filter system may still work. Water can still flow through the filter and the mechanical and biological filtration can remain active, while the UV-C lamp is no longer switched on.

With this separate ballast, this specific part of the installation can be repaired.

Specifically for the PondClear 6000

This ballast was developed as a spare part for the SuperFish PondClear 6000 and is not intended as a universal 7 watt UV-C transformer.

The PondClear 6000 is a pond filter in which biological and mechanical filtration are combined with an integrated UV-C unit.

The complete filter is specified for ponds up to a maximum of 6,000 liters and features a 7 watt UV-C lamp.

The system uses various filter materials to collect dirt and enable biological filtration. The UV-C forms an additional step in which the passing pond water is guided along the UV-C lamp.

Suitable 7 watt UV-C lamp

The PondClear 6000 uses a 7 watt UV-C PL lamp with G23 fitting.

The suitable SuperFish UV-C lamp has a length of approximately 135 mm. This is important when the UV-C lamp also needs to be replaced along with the transformer.

The lamp itself is not included with this ballast and must be ordered separately if necessary.

Always use a lamp with the correct power, the correct fitting and the correct dimensions for the PondClear 6000.

First check what is defective

When the UV-C of the PondClear 6000 no longer functions, this does not automatically mean that the transformer is defective.

The UV-C lamp itself can also be the cause. A UV-C lamp is a wear part whose effective UV-C output decreases during use. SuperFish advises replacing the lamp annually, with a maximum operating life of approximately 8,000 hours.

If the UV-C no longer lights up, therefore first check the lamp and the visible connections.

If a suitable and working 7 watt UV-C lamp is also not switched on, a defect in the ballast or electrical connection can be a possible cause.

UV-C lamp not included

This product specifically concerns the red 7 watt ballast for the older PondClear 6000.

The 7 watt UV-C lamp is not included. The quartz glass and the various seals around the UV-C construction are also not part of this transformer.

When only the UV-C lamp needs replacing, it can therefore be renewed separately without replacing the ballast.

Difference with the UV 7-9 Watt Service Kit

For the older PondClear 6000, in addition to this red ballast, a UV 7-9 Watt Service Kit Red is also available.

These two products have different functions.

The PondClear 6000 Transformer 7 Watt Red is the electrical starter for the UV-C lamp.

The UV 7-9 Watt Service Kit Red is intended for parts around the quartz glass and the seal of the UV-C construction.

With damaged quartz glass, you therefore do not automatically need a new ballast. With a defective ballast, replacing the quartz glass or the seals will not solve the electrical problem.

Do not confuse with the PondClear 3000

The PondClear 3000 and PondClear 6000 belong to the same filter series, but use different UV-C wattages.

The PondClear 3000 uses 5 watt UV-C, while the PondClear 6000 uses a 7 watt UV-C.

Separate ballasts are therefore available for both models.

Use this red 7 watt transformer exclusively for the older PondClear 6000 it is intended for.

Specifications of the PondClear 6000 filter

To check if you have the right filter, it is useful to know a few characteristics of the PondClear 6000.

The PondClear 6000 has a:

• Maximum specified pond volume of 6,000 liters
• UV-C wattage of 7 watts
• Maximum pump capacity of 5,000 liters per hour
• Hose connections of 25/32/40 mm

This data refers to the complete PondClear 6000 filter and not the separate transformer.

No universal 7 watt ballast

Another UV-C device may also use a 7 watt lamp, but that does not mean this SuperFish ballast fits it.

The electrical connection, construction and installation must match the device in question.

This transformer is therefore intended as a model-specific spare part for the SuperFish PondClear 6000 from before 2023 with red UV-C ballast.

Safe replacement

When replacing the ballast, you are working on an electrical component that is used near pond water. Therefore, always switch off the complete installation first.

Unplug the plugs from the socket and ensure that the UV-C is completely de-energized before you disassemble the parts.

During maintenance, also check the cables, connections, the quartz glass and the seals for visible damage.

Mount the new ballast correctly and ensure that all parts are fully sealed again before the installation is switched on again.

A UV-C lamp must never be switched on outside the housing intended for it. Also never look directly at a lit UV-C lamp.

Targeted repair of your existing PondClear

SuperFish offers various parts of the PondClear 6000 separately. In addition to the red and green UV-C ballast, service kits, replacement filter foam and an activated carbon mat are also available.

This allows you to replace a defective or worn part specifically when the rest of the filter system still functions well.

With the PondClear 6000 Transformer 7 Watt <2023, you specifically replace the red 7 watt UV-C ballast of the older version of the PondClear 6000.

Important points

• Original replacement part from SuperFish
• Suitable for the PondClear 6000
• For models <2023
• Red version
• Power: 7 watts
• Type: UV-C ballast/transformer
• For the integrated 7 watt UV-C
• Specifically for the older PondClear 6000
• Suitable UV-C lamp: 7 watt PL lamp
• Fitting suitable lamp: G23
• Length of suitable UV-C lamp: approximately 135 mm
• UV-C lamp not included
• Quartz glass not included
• UV-C service kit not included
• Not suitable as 5 watt ballast for the PondClear 3000
• No universal 7 watt UV-C ballast
• For the newer PondClear 6000, a green 7 watt ballast is available
• Check before ordering whether the existing ballast is the red version
