Fujimac

The FUJIMAC 300 KII is a powerful air pump for aerating large ponds and filter systems. With a specified air output of 300 liters per minute (18,000 liters per hour), this model delivers a large volume of air through a single pump. The pump was developed and manufactured in Japan and uses synthetic rubber (EPDM) diaphragms.

Aeration helps keep water moving and supplies air to, for example, air stones, aerated bottom drains, or a biological filter. The setup that best suits your pond depends on several factors, including water depth, the air distributors used, and resistance in the hoses. The FUJIMAC 300 KII has a specified operating pressure of 20 kPa (0.020 MPa) and an outlet with an inner diameter of 20 mm / outer diameter of 26 mm.

Key Features

• High air output: 300 l/min, or 18,000 l/hour.
• For larger aeration setups: suitable for ponds, bottom drains, and filter systems.
• EPDM diaphragms: replaceable parts for periodic maintenance.
• Automatic shut-off function: stops the pump if a diaphragm or the compression chamber is damaged.
• Noise level: rated at 50 dB for this model. aquaja.nl

Placement and Maintenance

Place the air pump in a dry, dust-free location above the water level, on a stable surface. Protect it from rain and splashing water. Ensure that air can flow freely: a kinked hose or clogged air stone can cause the pump to overheat. According to the manual, clean the air filter every three to four months and replace the air filter and diaphragms annually, or replace the diaphragms sooner if the air output decreases.

Specifications

The FUJIMAC 250 KII is a powerful pond air pump for installations that require a large volume of air. With a rated capacity of 250 litres per minute, equivalent to 15,000 litres per hour, this model is suitable for aerating large ponds, aerated bottom drains and biological filters. The pump was developed and manufactured in Japan.

The FUJIMAC uses synthetic rubber (EPDM) diaphragms. The design limits internal heat generation, which contributes to the durability of the diaphragms. The sturdy housing and replaceable maintenance parts make the pump suitable for pond installations that are in continuous use.

For ponds and filters

You can direct the airflow to multiple aeration points using a suitable hose or air distributor. Think of air stones in the pond, an aerated bottom drain or a moving filter bed. The amount of air that reaches each point depends on the water depth, the length and diameter of the hoses and the resistance of the air distributors used. When assembling the installation, take into account the working pressure of 20 kPa and the outlet of 20 mm internal diameter / 26 mm external diameter.

Placement and maintenance

Place the FUJIMAC 250 KII level on a stable, dry and dust-free location, protected from rain and splashing water. Place the pump above the water level to prevent water from flowing back through the air hose. Also ensure that the hoses are not kinked and the air stones remain clear, so that the pump can deliver air.

Clean the air filter every three to four months. The air filter and the diaphragms are replaceable; also check the diaphragms when the air output noticeably decreases. The pump has an automatic shut-off function that activates when a diaphragm or part of the compression chamber is damaged.

Specifications

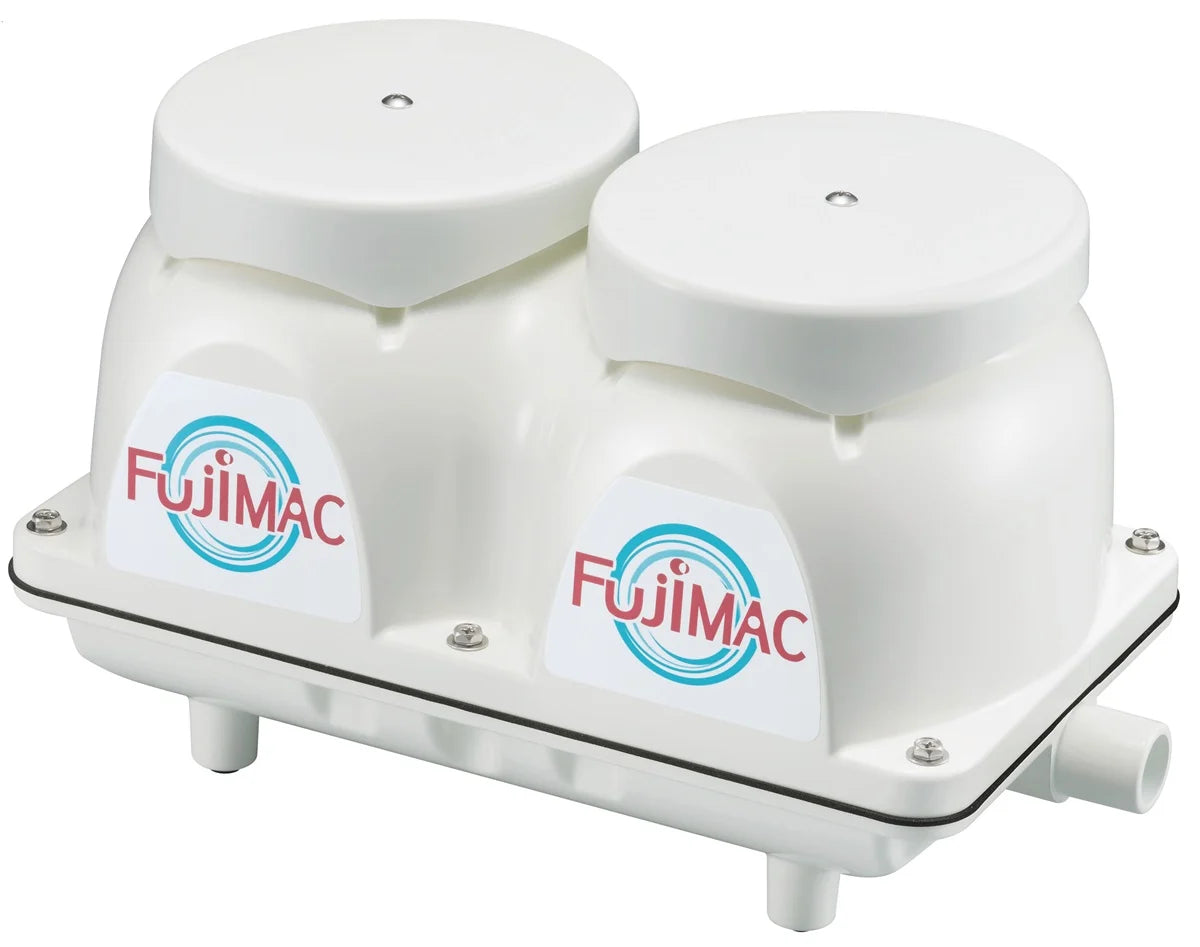

The FUJIMAC 200 KII is a powerful air pump for aerating larger ponds and biological filters. The pump delivers 200 liters of air per minute, or 12,000 liters per hour. This allows you to supply air to, for example, air stones, an aerated bottom drain, or a moving filter bed.

The pump was developed and manufactured in Japan and operates with synthetic rubber (EPDM) diaphragms. The design limits internal heat generation. With a specified noise level of 43 dB, the 200 KII is also relatively quiet for an air pump with this capacity.

Application and connection

The FUJIMAC 200 KII has an operating pressure of 20 kPa and an outlet of 20 mm inner diameter / 26 mm outer diameter. You can direct the airflow to one or more aeration points with a suitable connection. The amount of air that reaches them depends on, among other things, on the water depth, hose length, and resistance of the air stones or distributor.

Placement and maintenance

Place the air pump level on a stable, dry, and dust-free location, protected from rain and splashing water. Place the pump above the water level, so that water cannot flow back through the air hose. Prevent kinked hoses and clogged air stones: the pump must be able to discharge its air freely.

Clean the air filter every three to four months and replace it annually. Replace the diaphragms annually or sooner if they are damaged or the air output decreases. In the event of damage to a diaphragm or the compression chamber, the automatic stop function turns off the pump.

Specifications

FUJIMAC 150 KII pond air pump – Fujimac

The FUJIMAC 150 KII is a pond air pump for aerating koi ponds and biological filters. With a rated air output of 150 liters per minute (9,000 liters per hour), you can supply air to, for example, air stones, an aerated bottom drain, or a moving filter bed.

The pump was developed and manufactured in Japan and operates with synthetic rubber (EPDM) diaphragms. The design limits internal heat generation. The rated noise level of the 150 KII is 41 dB.

Application and connection

The FUJIMAC 150 KII has an operating pressure of 20 kPa and an outlet of 20 mm inner diameter / 26 mm outer diameter. With a suitable hose and air distributor, you can distribute the air over multiple aeration points. Keep in mind the water depth, hose length, and resistance of the air stones: these determine how much air ultimately reaches each point.

Placement and maintenance

Place the pump level on a stable, dry, and dust-free location, protected from rain and splashing water. Place it above the water level to prevent water from flowing back through the air hose. Make sure the hoses are not kinked and that the air stones do not become clogged, so that the pump can deliver its air freely.

Clean the air filter every three to four months and replace it annually. Replace the diaphragms annually or sooner if they are damaged or the air output decreases. In the event of damage to a diaphragm or the compression chamber, the automatic stop function turns off the pump.

Specifications

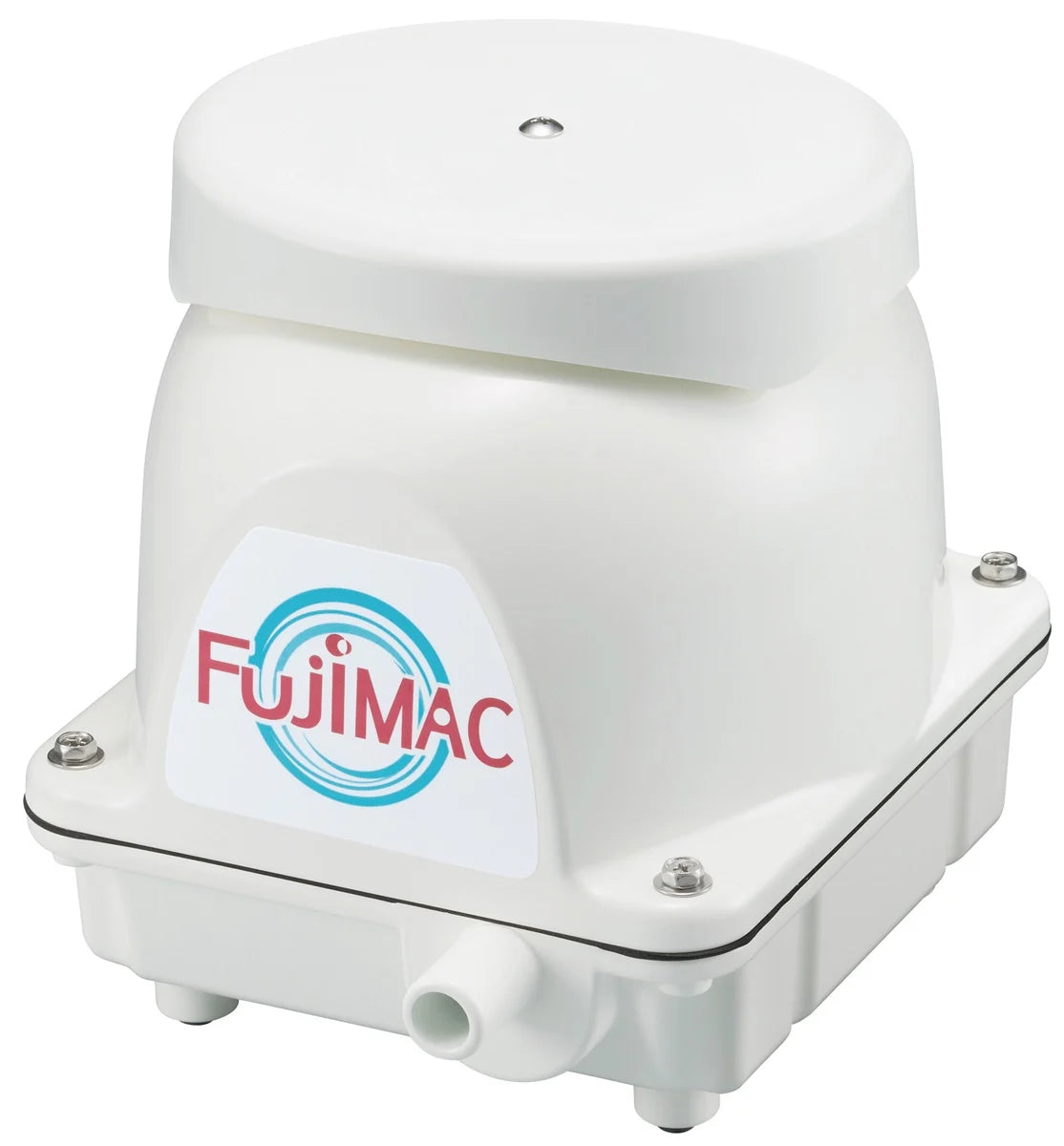

The FUJIMAC 100 KII is an air pump for aerating ponds and biological filters. The pump delivers 100 liters of air per minute (6,000 liters per hour). This allows you to supply air to, for example, air stones, an aerated bottom drain, or a moving filter bed.

The air pump was developed and manufactured in Japan and uses synthetic rubber (EPDM) diaphragms. The design limits internal heat generation. The 100 KII has a rated noise level of 39 dB.

Application and connection

With a suitable hose and air distributor, you can distribute the airflow over multiple aeration points. The FUJIMAC 100 KII has an operating pressure of 18 kPa and an outlet of 13 mm inner diameter / 18 mm outer diameter. Check this connection size when choosing a hose or distributor. The amount of air that reaches each point depends, among other things, on the water depth, the hose length, and the resistance of the air stones.

Placement and maintenance

Place the pump level on a stable, dry, and dust-free location, protected from rain and splashing water. Place it above the water level so that water cannot flow back through the air hose. Keep hoses free from kinks and regularly check air stones for blockages. The pump must be able to continue delivering air.

Clean the air filter every three to four months and replace it annually. Replace the diaphragms annually or sooner if they are damaged or the air output decreases. In the event of damage to a diaphragm or the compression chamber, the automatic stop function switches off the pump.

Specifications

FUJIMAC 80 KII pond air pump – Fujimac

The FUJIMAC 80 KII is an air pump for aerating ponds and biological filters. With a rated air output of 80 liters per minute (4,800 liters per hour), you can supply air to, for example, air stones, an aerated bottom drain, or a moving filter bed.

The pump was developed and manufactured in Japan and uses synthetic rubber (EPDM) diaphragms. The limited internal heat generation contributes to the lifespan of these diaphragms. The rated noise level of the 80 KII is 36 dB.

Application and connection

The FUJIMAC 80 KII has an operating pressure of 15 kPa and an outlet with an inner diameter of 13 mm and an outer diameter of 18 mm. With a suitable hose and air distributor, you can distribute the air over multiple aeration points. The amount of air that reaches each point depends on, among other things, the water depth, the hose length, and the resistance of the air stones or distributor.

Placement and maintenance

Place the pump level on a stable, dry, and dust-free location, protected from rain and splashing water. Place it above the water level to prevent water from flowing back through the air hose. Regularly check that hoses are not kinked and air stones are not clogged.

Clean the air filter every three to four months and replace it annually. Replace the diaphragms annually or sooner if the air output decreases or the diaphragms are damaged. In the event of damage to a diaphragm or the compression chamber, the automatic stop function switches off the pump.

Specifications

The FUJIMAC 60 KII is a pond air pump for aerating ponds and biological filters. The pump has a rated air output of 60 liters per minute (3,600 liters per hour). This allows you to supply air to, for example, air stones in the pond or a moving filter bed.

The pump was developed and manufactured in Japan and operates with synthetic rubber (EPDM) diaphragms. The design limits internal heat generation. With a rated noise level of 35 dB, the 60 KII operates relatively quietly.

Application and connection

The FUJIMAC 60 KII has an operating pressure of 15 kPa and an outlet of 13 mm inner diameter / 18 mm outer diameter. With a suitable hose or air distributor, you can direct the air to one or more aeration points. How much air each point receives depends, among other things, on the water depth, the hose length, and the resistance of the air stones.

Placement and maintenance

Place the pump level on a stable, dry, and dust-free location, protected from rain and splashing water. Place it above the water level so that water does not flow back through the air hose. Prevent kinked hoses and clogged air stones: the pump must be able to release its air freely.

Clean the air filter every three to four months and replace it annually. Replace the diaphragms annually or sooner if they are damaged or the air output decreases. In the event of damage to a diaphragm or the compression chamber, the automatic stop function turns off the pump.

Specifications

FUJIMAC 40 KII pond aeration pump – Fujimac

The FUJIMAC 40 KII is a pond aeration pump for aerating a pond or biological filter. The pump delivers 40 liters of air per minute (2,400 liters per hour). This allows you to supply air to, for example, air stones in the pond or a moving filter bed.

This air pump was developed and manufactured in Japan and operates with synthetic rubber (EPDM) diaphragms. The design limits internal heat generation. The 40 KII has a rated noise level of 32 dB.

Application and connection

The FUJIMAC 40 KII has an operating pressure of 12 kPa and an outlet of 13 mm inner diameter / 18 mm outer diameter. Connect a suitable air hose to this. If you want to use multiple air stones, you can distribute the air over the aeration points with a suitable manifold.

The amount of air that reaches an air stone depends on, among other things, on the water depth, the hose length, and the resistance of the air stone. Keep this in mind when assembling your aeration system.

Placement and maintenance

Place the pump level on a stable, dry, and dust-free location, protected from rain and splashing water. Place the pump above the water level, so that water does not flow back through the air hose. Regularly check that the hose is not kinked and the air stones are not clogged. The pump must be able to release its air freely.

Clean the air filter every three to four months and replace it annually. Replace the diaphragms annually or sooner if they are damaged or the air output decreases. The 40 KII does not have an automatic shut-off function; therefore, timely inspection of the diaphragms and free air flow is extra important.

Warranty

The FUJIMAC 40 KII comes with a 3-year manufacturer's warranty on material and construction defects, provided that the diaphragms are replaced annually. Keep the proof of purchase and follow the instructions for placement and maintenance. Normal wear and tear of the diaphragms is not covered by the manufacturer's warranty.

Specifications
